Product type: OT1000KLUU4BZ

OT1000KLUU4BZ Encl. Switch Disconnector

RoHS Compliant

Description

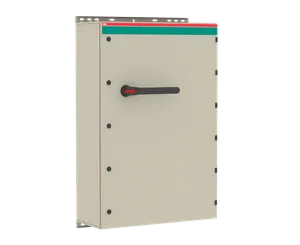

Encl. Switch Disconnector, 4-p. 415V AC23 1000A, 560kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing. OT1000KLUU4BZ
Read More
  • Low Voltage Products and Systems
  • Enclosed Switches
  • Enclosed Switch-Disconnectors
  • Enclosed Switch-Disconnectors
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight71.53 KG / psc.
Commodity number85363090
Country of originFI
Dimensions (WxHxD)815x425x1310 mm
EAN code6417019387239
Product groupFA
eclass V11.1 : 27371403
etim 5 EC000216 - Switch disconnector
etim 6 EC000216 - Switch disconnector
etim 7 EC000216 - Switch disconnector
etim 8 EC000216 - Switch disconnector
standards IEC 60947-1, -3
power loss at Rated Operating Conditions per Pole 19 W
handle type Pistol handle
rohs status Following EU Directive 2011/65/EU
handle color Black
neutral type Switchable neutral
weee category 4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles 4
pollution degree 3
rohs information https://library.abb.com/d/1SCC340075D0201
reach declaration https://library.abb.com/d/1SCC340076D0201
enclosure material Steel sheet
mechanical drawings https://library.abb.com/d/OTKM128023PBL.stp
cable entry position Up/Down
degree of protection acc. to IEC 60529 IP65
cable outlets per side Blank / Blank
impact resistance rating Housing IK09
rated operational voltage Main Circuit 1000 V
mounted auxiliary contacts 0 NO, 0 NC
object classification code Q
rated insulation voltage (ui) acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce https://library.abb.com/d/1SCC340039D2703
number of auxiliary contacts nc 0
number of auxiliary contacts no 0
connecting capacity main circuit Hole Diameter 12 mmScrew Clamp / PE Terminal 8pc,25 ... 120 mm2
data sheet, technical information https://library.abb.com/d/1SCC340015C0201
maximum mounted auxiliary contacts 2 NO, 1 NC
conventional thermal current (ithe) Fully Enclosed 1000 A
rated operational power ac-23a (pe) (380 ... 415 V) 560 kW(500 V) 710 kW(690 V) 1000 kW
rated operational current ac-22a (ie) (380 ... 415 V) 1000 A(690 V) 1000 A
rated operational current ac-23a (ie) (380 ... 415 V) 1000 A(500 V) 1000 A(690 V) 1000 A
rated short-circuit making capacity (icm) (690 V AC) 92 kA
rated short-time withstand current low voltage (icw) for 1 s 50 kA
