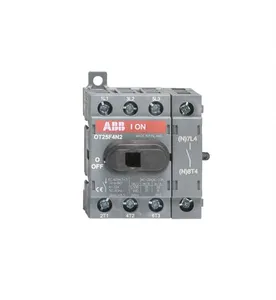

| Weight | 0.125 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 0.048x0.068x0.056 m |
| EAN code | 6417019390185 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| unspsc | 39122233 |
| lock type | No |
| standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| power loss | at Rated Operating Conditions per Pole 0.6 W |
| handle type | KnobHandle and shaft not included |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| ampere rating | 30 A |
| mounting type | Base mounting |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front operated |
| ul certificate | https://library.abb.com/d/cULus certificate OT16-80 |
| number of poles | 4 |
| vde certificate | https://library.abb.com/d/No certification needed |
| atex certificate | https://library.abb.com/d/No certification needed |
| fourth pole type | Switched - Simultaneous Function |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC011020D0201 |
| e-number (sweden) | 3171067 |
| reach declaration | https://library.abb.com/d/1SCC011021D0201 |
| special functions | No |
| tightening torque | acc. IEC 60947-1 0.8 N·m |
| e-number (finland) | 3601431 |
| cable cross-section | Cu 0.75 ... 10 mm2 |
| mechanical drawings | https://library.abb.com/d/1SCC301436F0001, https://library.abb.com/d/1SCC301435F0001, https://library.abb.com/d/OT16-40F4N2.igs |
| degree of protection | Front IP20 |
| fourth pole position | Right Side |
| mechanical durability | 20000 |
| distance between phases | Standard |
| horsepower rating ul/csa | (110 ... 120 V AC) Single Phase 1.5 Hp(240 V AC) Single Phase 3 Hp(440 ... 480 V AC) Single Phase 7.5 Hp(550 ... 600 V AC) Single Phase 10 Hp(220 ... 240 V AC) Three Phase 7,5 Hp(440 ... 480 V AC) Three Phase 15 Hp(550 ... 600 V AC) Three Phase 20 Hp |
| tightening torque ul/csa | 7 in·lb |
| environmental information | https://library.abb.com/d/1SCC301262D0201 |
| rated operational voltage | Main Circuit 750 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism on Top of the Switch |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 750 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301166D2703 |
| maximum operating voltage ul/csa | 600 V |
| data sheet, technical information | https://library.abb.com/d/1SCC301020C0201 |
| conventional thermal current (ithe) | Fully Enclosed 32 A |
| rated operational power ac-23a (pe) | (220 ... 240 V) 4 kW(400 ... 415 V) 9 kW(500 V) 9 kW(690 V) 9 kW |
| rated operational current ac-21a (ie) | (380 ... 415 V) 25 A(500 V) 25 A(690 V) 25 A |
| rated operational current ac-22a (ie) | (380 ... 415 V) 25 A(500 V) 25 A(690 V) 25 A |
| rated operational current ac-23a (ie) | (380 ... 415 V) 20 A(500 V) 20 A(690 V) 11 A |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated short-circuit making capacity (icm) | (690 V) 0.71 kA |
| conventional free-air thermal current (ith) | q = 40 °C 32 A |
| rated conditional short-circuit current (inc) | (40 A fuse, ≤415V) 50 kA(25 A fuse, 690 V) 50 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 0.5 kA |
