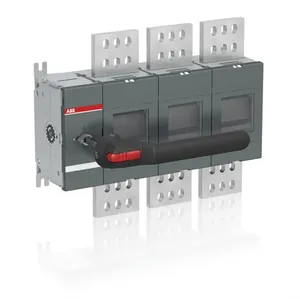

| Weight | 25.8 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 580x500x780 mm |
| EAN code | 6417019391113 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| lock type | Yes |
| standards | IEC 60947-3 |
| power loss | at Rated Operating Conditions per Pole 85 W |
| handle type | Handle and shaft included |
| rohs status | Following EU Directive 2011/65/EU |
| handle color | Black |
| mounting type | Base mounting |
| terminal type | Lug terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front operated |
| terminal width | 100 mm |
| number of poles | 3 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC301176D2702 |
| special functions | No |
| tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
| dnv gl certificate | https://library.abb.com/d/1SCC301184D0203 |
| e-number (finland) | 3641585 |
| mechanical drawings | https://library.abb.com/d/1SCC301516F0001, https://library.abb.com/d/1SCC301515F0001, https://library.abb.com/d/OT2500E03.igs |
| degree of protection | Front IP00 |
| mechanical durability | 6000 |
| distance between phases | Standard |
| environmental information | https://library.abb.com/d/1SCC301268D0201 |
| rated operational voltage | Main Circuit 1000 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism at the End of the Switch03 (Left Side) |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301176D2702 |
| data sheet, technical information | https://library.abb.com/d/1SCC301020C0201 |
| rated operational current ac-21b (ie) | (380 ... 415 V) 2500 A(500 V) 2500 A(690 V) 2500 A |
| rated operational current ac-22b (ie) | (380 ... 415 V) 2500 A(500 V) 2500 A(690 V) 2500 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| rated short-circuit making capacity (icm) | (690 V) 176 kA |
| conventional free-air thermal current (ith) | q = 40 °C 2500 A |
| rated short-time withstand current low voltage (icw) | for 1 s 55 kA |
