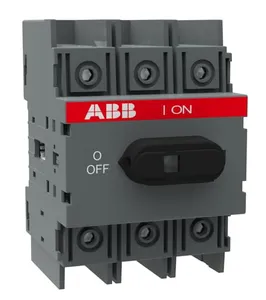

| Weight | 0.36 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 81x86x112 mm |
| EAN code | 6417019391984 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| unspsc | 39122233 |
| lock type | No |
| standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| power loss | at Rated Operating Conditions per Pole 0.7 W |
| handle type | KnobHandle and shaft not included |
| rohs status | Following EU Directive 2011/65/EU |
| mounting type | Base mounting |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front operated |
| ul certificate | https://library.abb.com/d/cULus certificate OT30-125 |
| number of poles | 3 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC301010D0201 |
| e-number (sweden) | 3171945 |
| special functions | No |
| tightening torque | acc. IEC 60947-1 6.2 N·m |
| e-number (finland) | 3601437 |
| cable cross-section | Cu 2.5 ... 25 mm2 |
| mechanical drawings | https://library.abb.com/d/1SCC307713F0001, https://library.abb.com/d/1SCC307712F0001, https://library.abb.com/d/OT30-60F3.stp, https://library.abb.com/d/OT30-60F3.igs |
| ampere rating ul/csa | 30 A |
| degree of protection | Front IP20 |
| mechanical durability | 20000 |
| distance between phases | Standard |
| horsepower rating ul/csa | (110 ... 120 V AC) Single Phase 2 Hp(240 V AC) Single Phase 5 Hp(220 ... 240 V AC) Three Phase 10 Hp(440 ... 480 V AC) Three Phase 20 Hp(550 ... 600 V AC) Three Phase 30 Hp |
| tightening torque ul/csa | 55 in·lb |
| environmental information | https://library.abb.com/d/1SCC301183D0201 |
| rated operational voltage | Main Circuit 750 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism on Top of the Switch |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 750 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301010D0201 |
| maximum operating voltage ul/csa | 600 V |
| data sheet, technical information | https://library.abb.com/d/1SCC301020C0201 |
| rated operational power ac-23a (pe) | (380 ... 415 V) 18.5 kW(500 V) 22 kW(690 V) 37 kW |
| rated operational current ac-21a (ie) | (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A |
| rated operational current ac-22a (ie) | (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A |
| rated operational current ac-23a (ie) | (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated short-circuit making capacity (icm) | (690 V) 3.6 kA |
| rated conditional short-circuit current (inc) | (125 A fuse, 415 V) 50 kA(125 A fuse, 690 V) 10 kA(63 A fuse, 690 V) 50 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 2.5 kA |
