| Weight | 3.7 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 186x185x300 mm |
| EAN code | 6417019407128 |
| Product group | FA |

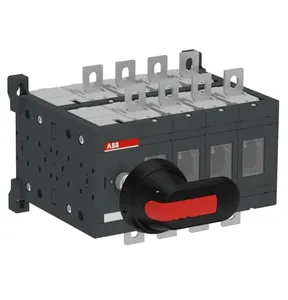

| etim 5 | EC000216 - Switch disconnector |
| lock type | Yes |
| standards | IEC 60947-3 |
| power loss | at Rated Operating Conditions per Pole 6.5 W |
| handle type | Handle and shaft included |
| rohs status | Following EU Directive 2011/65/EU |
| handle color | Black |
| terminal type | Lug terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front operated |
| terminal width | 20 mm |
| number of poles | 8 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC301131D2705 |
| tightening torque | acc. IEC 60947-1 15 ... 22 N·m |
| degree of protection | Front IP00 |
| mechanical durability | 20000 |
| environmental information | https://library.abb.com/d/1SCC301265D0201 |
| rated operational voltage | Main Circuit 1000 V |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301131D2705 |
| conventional thermal current (ithe) | Fully Enclosed 250 A |
| rated operational power ac-23a (pe) | (220 ... 240 V) 75 kW(400 ... 415 V) 145 kW(500 V) 170 kW(690 V) 250 kW |
| rated operational current ac-21a (ie) | (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A |
| rated operational current ac-22a (ie) | (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A |
| rated operational current ac-23a (ie) | (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| rated short-circuit making capacity (icm) | (690 V) 30 kA |
| conventional free-air thermal current (ith) | q = 40 °C 250 A |
| rated conditional short-circuit current (inc) | (315 A fuse, 500 V) 100 kA(355 A fuse, 690 V) 80 kA(250 A fuse, 690 V) 100 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 8 kA |
