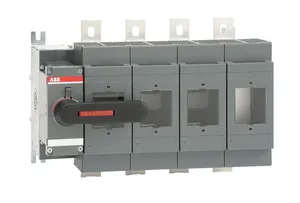

| Weight | 19.35 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 0.431x0.306x0.233 m |
| EAN code | 6417019419329 |
| Product group | FA |
| eclass | V11.1 : 27371401 |
| etim 4 | EC001040 - Fuse switch disconnector |
| etim 5 | EC001040 - Fuse switch disconnector |
| etim 6 | EC001040 - Fuse switch disconnector |
| etim 7 | EC001040 - Fuse switch disconnector |
| etim 8 | EC001040 - Fuse switch disconnector |
| fuse size | NH3 |
| standards | IEC 60947-3 |
| power loss | at Rated Operating Conditions per Pole 60 W |
| fuse system | DIN |
| handle type | Direct mounted handle included |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| mounting type | Base mounting |
| terminal type | Lug terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front Operated |
| terminal width | 39 mm |
| ccc certificate | https://library.abb.com/d/CCC OS630-800 2016 |
| eac certificate | https://library.abb.com/d/EAC OT_OTDC_OTL_OTP_OTR_OTU_OTE_OETL_OESA_OESC_OTM_OS_OSM_.pdf |
| number of poles | 4 |
| fourth pole type | Switched - With Solid Link |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC311112D2704 |
| tightening torque | 50 ... 75 N·m |
| dnv gl certificate | https://library.abb.com/d/1SCC311131D0202 |
| rated current (in) | Main Circuit 630 A |
| cable cross-section | 2.5 ... 25 mm2 |
| fourth pole position | Right Side |
| rated operational voltage | Main Circuit 690 V AC |
| object classification code | Q |
| position of line terminals | Top In - Bottom Out, Bottom In - Top Out |
| switches operating mechanism | 04 (Left Side) |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC311112D2704 |
| data sheet, technical information | https://library.abb.com/d/1SCC311013C0201 |
| conventional thermal current (ithe) | Fully Enclosed 570 A |
| rated operational power ac-23a (pe) | (220 ... 240 V) 200 kW(400 V) 355 kW(415 V) 355 kW(500 V) 450 kW(690 V) 630 kW |
| rated operational current ac-21a (ie) | (500 V) 630 A(690 V) 630 A |
| rated operational current ac-22a (ie) | (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A |
| rated operational current ac-23a (ie) | (500 V) 630 A(380 ... 415 V) 630 A(690 V) 630 A |
| rated operational current ac-23b (ie) | (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| conventional free-air thermal current (ith) | q = 40 °C 630 A |
| rated conditional short-circuit current (inc) | (690 V) 80 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 18 kiloampere rms |
