ABB

1SCA117332R1001

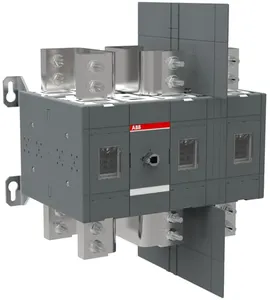

Product type: OT2000U12

Lasttrennschalter 3-polig 2000 A, ohne Griff und Welle UL/CSA Trägerplattenmontage

Description

3-poliger, frontbetätigter, Lasttrennschalter, Montage auf Montageplatte, Griff und Welle sind nicht enthalten, Klemmenbolzenset wird mitgeliefert
  • Low Voltage Products and Systems
  • Switches
  • Switch Disconnectors
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight53.7 KG / psc.
Commodity number85365080
Country of originFI
Dimensions (WxHxD)0.49x0.546x0.415 m
EAN code6417019493411
Product groupFA
eclass V11.1 : 27371403
etim 5 EC000216 - Switch disconnector
etim 6 EC000216 - Switch disconnector
etim 7 EC000216 - Switch disconnector
etim 8 EC000216 - Switch disconnector
lock type No
standards UL 98 / CSA C22.2 NO.4
power loss at Rated Operating Conditions per Pole 96 W
handle type Handle and shaft not included
rohs status Following EU Directive 2011/65/EU
mounting type Base mounting
terminal type Lug terminals
weee category 4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode Front operated
number of poles 3
pollution degree 3
rohs information https://library.abb.com/d/1SCC301149D0203
special functions No
tightening torque acc. IEC 60947-1 56 N·m
ampere rating ul/csa 2000 A
degree of protection Front IP00
mechanical durability 2500
distance between phases Standard
tightening torque ul/csa 500 in·lb
rated operational voltage Main Circuit 1000 V
object classification code Q
position of line terminals Top In - Bottom OutBottom In - Top Out
switches operating mechanism Mechanism Between the Poles12 (Between the Poles)
declaration of conformity - ce https://library.abb.com/d/No declaration needed
maximum operating voltage ul/csa 600 V
rated impulse withstand voltage (uimp) 12 kV
rated short-time withstand current low voltage (icw) for 1 s 50 kA
