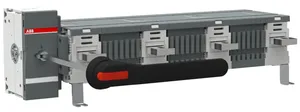

| Weight | 26.2 KG / psc. |
| Commodity number | 85369095 |
| Country of origin | FI |
| Dimensions (WxHxD) | 0.745x0.306x0.234 m |
| EAN code | 6417019505626 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| lock type | Yes |
| standards | IEC 60947-3 |
| power loss | at Rated Operating Conditions per Pole 29 W |
| handle type | Handle and shaft included |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| utilization | Earthing Switch Use |
| handle color | Black |
| mounting type | Base mounting |
| terminal type | Lug terminals |
| weee category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| operating mode | Front operated |
| ul certificate | https://library.abb.com/d/No certification needed |
| number of poles | 4 |
| vde certificate | https://library.abb.com/d/No certification needed |
| atex certificate | https://library.abb.com/d/No certification needed |
| fourth pole type | Switched - Simultaneous Function |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC011020D0201 |
| reach declaration | https://library.abb.com/d/1SCC011021D0201 |
| special functions | Wide phase distance 185 |
| tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
| dnv gl certificate | https://library.abb.com/d/1SCC301184D0203 |
| e-number (finland) | 3601479 |
| degree of protection | Front IP00 |
| fourth pole position | Right Side |
| mechanical durability | 6000 |
| distance between phases | Phase distance 185 mm |
| environmental information | https://library.abb.com/d/1SCC301233D0201 |
| rated operational voltage | Main Circuit 1000 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | 04 (Left Side) Mechanism turned 90 degrees |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301155D2704 |
| data sheet, technical information | https://library.abb.com/d/1SCC301020C0201 |
| conventional thermal current (ithe) | Fully Enclosed 1250 A |
| rated operational power ac-23a (pe) | (400 ... 415 V) 710 kW(500 V) 900 kW(690 V) 1200 kW |
| rated operational current ac-22a (ie) | (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A |
| rated operational current ac-23a (ie) | (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| rated short-circuit making capacity (icm) | (690 V) 92 kA |
| conventional free-air thermal current (ith) | q = 40 °C 1250 A |
| rated conditional short-circuit current (inc) | (1250 A fuse, 415 V) 80 kA(1250 A fuse, 500 V) 100 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 50 kA |
