ABB

1SCA121220R1001

Product type: OTM250E2WCM230V

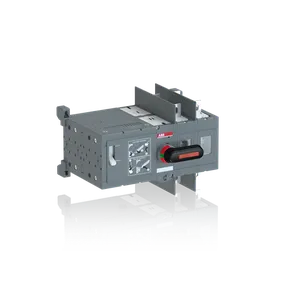

OTM250E2WCM230V MOTORIZED C/O SWITCH

Datasheet

Description

Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Extended phase distance.

Low Voltage Products and Systems
Switches
Change-over and Transfer Switches
Motorized Change-over Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA121220R1001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.7 KG / psc.
Commodity number	85365080
Country of origin	FI
Dimensions (WxHxD)	254x170x197 mm
EAN code	6417019524955
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
power loss	6.5 W
handle type	Direct mounted handle
handle color	Black
mounting type	Base mounting
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
operating mode	Front operated
number of poles	2
transition type	Open
pollution degree	3
degree of protection	Front IP20
distance between phases	Wide phase distance
motor operational voltage	220 ... 240 V AC
rated operational voltage	1000 V
object classification code	Q
position of line terminals	Top In - Bottom Out, Bottom In - Top Out
switches operating mechanism	Mechanism at the End of the Switch
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/1SCC303003C0201
conventional thermal current (ithe)	Fully Enclosed 250 A
rated operational current ac-21a (ie)	(380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
rated operational current ac-22a (ie)	(380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
rated operational current ac-31b (ie)	(380 ... 415 V) 250 A
rated operational current ac-33b (ie)	(380 ... 415 V) 250 A
rated impulse withstand voltage (uimp)	12 kV
conventional free-air thermal current (ith)	q = 40 °C 250 A
rated short-time withstand current low voltage (icw)	for 1 s 8 kiloampere rms
