1SCA121291R1001
ABB

1SCA121291R1001

Product type: OTM2500E2CM230V

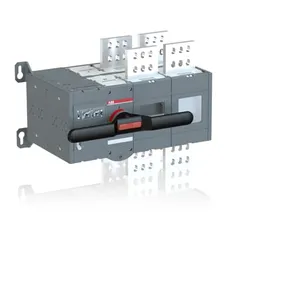

OTM2500E2CM230V MOTORIZED C/O SWITCH

Description

OTM2500E2CM230V MOTORIZED C/O SWITCH, Direct mounted handle, Open transition
Read More
  • Low Voltage Products and Systems
  • Switches
  • Change-over and Transfer Switches
  • Motorized Change-over Switches
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight61 KG / psc.
Commodity number85365080
Country of originFI
Dimensions (WxHxD)519x377x372 mm
EAN code6417019525365
Product groupFA
eclass V11.1 : 27371403
etim 5 EC000216 - Switch disconnector
etim 6 EC000216 - Switch disconnector
etim 7 EC000216 - Switch disconnector
etim 8 EC000216 - Switch disconnector
power loss 85 W
handle type Direct mounted handle
rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
handle color Black
mounting type Base mounting
weee category 4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode Front operated
number of poles 2
transition type Open
pollution degree 3
rohs information https://library.abb.com/d/1SCC011020D0201
reach declaration https://library.abb.com/d/1SCC011021D0201
degree of protection Front IP20
distance between phases Standard
motor operational voltage 220 ... 240 V AC
rated operational voltage 1000 V
object classification code Q
position of line terminals Top In - Bottom Out, Bottom In - Top Out
switches operating mechanism Mechanism at the End of the Switch
rated insulation voltage (ui) 1000 V
declaration of conformity - ce https://library.abb.com/d/No declaration needed
data sheet, technical information https://library.abb.com/d/1SCC303003C0201
rated operational current ac-21b (ie) (380 ... 415 V) 2500 A(500 V) 2500 A
rated impulse withstand voltage (uimp) 12 kV
conventional free-air thermal current (ith) q = 40 °C 2500 A
rated short-time withstand current low voltage (icw) for 1 s 55 kiloampere rms
