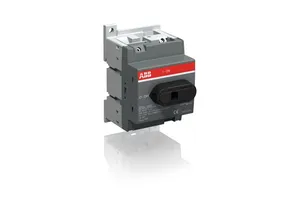

| Weight | 0.14 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | EE |
| Dimensions (WxHxD) | 0.053x0.089x0.066 m |
| EAN code | 6417019525990 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| standards | IEC 60947-1, -3 |
| power loss | at Rated Operating Conditions per Pole 0.15 W |
| handle type | Knob handle |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| utilization | Photovoltaic |
| handle color | Black |
| mounting type | Base mounting, DIN-rail mounting |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front Operated |
| shaft diameter | 6 mm0.24 in |
| ccc certificate | https://library.abb.com/d/CQC2012010302579872 |
| number of poles | 2 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC301239D0201 |
| e-number (sweden) | 3134016 |
| reach declaration | https://library.abb.com/d/1SCC301240D0201 |
| special functions | No |
| tightening torque | 1.2 ... 1.4 N·m |
| dnv gl certificate | https://library.abb.com/d/1SCC301231D0201 |
| e-number (finland) | 3601351 |
| number of circuits | 1 |
| product frame size | XS |
| cable cross-section | 2.5 ... 16 mm2 |
| mechanical drawings | https://library.abb.com/d/OTDC16-32F2.igs, https://library.abb.com/d/1SCC301970F0001, https://library.abb.com/d/1SCC301971F0001 |
| degree of protection | Front IP20 |
| utilization category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| environmental information | https://library.abb.com/d/NA |
| rated operational voltage | 1000 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism on Top of the Switch |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301192D2704 |
| declaration of conformity - ukca | https://library.abb.com/d/1SCC301313D0201 |
| data sheet, technical information | https://library.abb.com/d/1SCC301022C0201 |
| conventional thermal current (ithe) | Fully Enclosed 25 A |
| rated operational current dc-21b (ie) | (660 V) 16 A(1000 V) 10 A |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated short-circuit making capacity (icm) | (1000 V DC) 0.8 kA |
| conventional free-air thermal current (ith) | q = 40 °C 25 A |
| rated short-time withstand current low voltage (icw) | (1000 V DC) 0.8 kAfor 1 s 0.8 kA |
| positive opening operation torque (direct opening action) | 0.4 ... 0.8 N·m |
