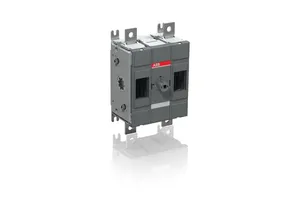

| Weight | 1.2 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 0.116x0.176x0.085 m |
| EAN code | 6417019556710 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| standards | IEC 60947-1, -3 |
| power loss | at Rated Operating Conditions per Pole 6 W |
| handle type | Handle and shaft not included |
| rohs status | Following EU Directive 2011/65/EU |
| utilization | Photovoltaic |
| mounting type | Base mounting |
| terminal type | Lug terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front Operated |
| shaft diameter | 6 mm0.24 in |
| terminal width | 19.5 mm0.77 in |
| ccc certificate | https://library.abb.com/d/CQC2013010302611671 |
| number of poles | 2 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC301201D2703 |
| special functions | No |
| tightening torque | Cable Lug 15 ... 22 N·m |
| dnv gl certificate | https://library.abb.com/d/1SCC301231D0201 |
| number of circuits | 1 |
| product frame size | S1.0 |
| mechanical drawings | https://library.abb.com/d/OTDC100_250E11.igs, https://library.abb.com/d/1SCC307007F0002, https://library.abb.com/d/1SCC307008F0002 |
| degree of protection | Front IP20 |
| utilization category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| connection configuration | Single circuit 2a, 2b |
| environmental information | https://library.abb.com/d/NA |
| rated operational voltage | 1000 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism Between the Poles11 (Between the Poles) |
| rated insulation voltage (ui) | 1500 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301201D2703 |
| data sheet, technical information | https://library.abb.com/d/1SCC301022C0201 |
| conventional thermal current (ithe) | Fully Enclosed 200 A |
| rated operational current dc-21b (ie) | (1000 V) 200 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| rated short-circuit making capacity (icm) | (1000 V DC) 10 kA |
| conventional free-air thermal current (ith) | q = 40 °C 200 A |
| rated short-time withstand current low voltage (icw) | (1000 V DC) 10 kAfor 1 s 5 kAfor 0.1 s 10 kA |
| positive opening operation torque (direct opening action) | 5 ... 8 N·m |
