ABB

1SCA129158R1001

Product type: OT3200E04CP

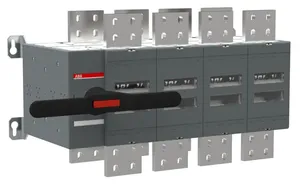

OT3200E04CP CHANGE-OVER SWITCH

Datasheet

RoHS Compliant

Description

3200A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked. OT3200E04CP

Low Voltage Products and Systems
Switches
Change-over and Transfer Switches
Manual Change-over Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA129158R1001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	88.6 KG / psc.
Commodity number	85365080
Country of origin	FI
Dimensions (WxHxD)	590x510x790 mm
EAN code	6417019588568
Product group	FA
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
handle type	Handle and shaft included
mounting type	Base mounting
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode	Front operated
number of poles	4
transition type	Open
fourth pole type	Switched - Simultaneous Function
fourth pole position	Right Side
distance between phases	Standard
object classification code	Q
position of line terminals	Top In - Bottom Out, Bottom In - Top Out
switches operating mechanism	Mechanism at the End of the Switch04 (Left Side)
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/1SCC340009C0201
rated operational current ac-21b (ie)	(380 ... 415 V) 3200 A(500 V) 3200 A
conventional free-air thermal current (ith)	q = 40 °C 3200 A
