ABB

1SCA129207R1001

Name: 1SCA129207R1001
Brand: ABB
Availability: PreOrder

Product type: OTM4000E4W8M230C

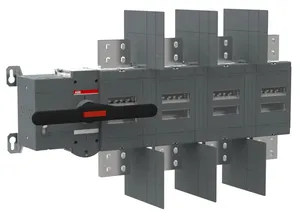

OTM4000E4W8M230C MOTORIZED SWITCH

RoHS Compliant

Description

4-pole, motor operated, base mounted switch-diconnector with handle for manual operation, terminal bolt kit, handle and spare fuse storage clip and male connector for control circuit OTM4000E4W8M230C

Low Voltage Products and Systems
Switches
Motorized Switch-Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA129207R1001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	52.885 KG / psc.
Commodity number	85365080
Country of origin	FI
Dimensions (WxHxD)	590x790x210 mm
EAN code	6417019589015
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
lock type	Yes
standards	IEC 60947-3
power loss	at Rated Operating Conditions per Pole 120 W
handle type	Direct mounted handle
rohs status	Following EU Directive 2011/65/EU
handle color	Black
mounting type	Base mounting
terminal type	Lug terminals
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode	Front operated
number of poles	4
fourth pole type	Switched - Simultaneous Function
pollution degree	3
special functions	Wide phase distance 185
tightening torque	acc. IEC 60947-1 50 ... 75 N·m
degree of protection	Front IP00
fourth pole position	Right Side
mechanical durability	5000
distance between phases	Phase distance 185 mm
motor operational voltage	220 ... 240 V AC
rated operational voltage	Main Circuit 1000 V
object classification code	Q
position of line terminals	Top In - Bottom Out
switches operating mechanism	Mechanism at the End of the Switch
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce	https://library.abb.com/d/1SCC301214D2701
rated operational current ac-21b (ie)	(380 ... 415 V) 4000 A
rated operational current ac-22b (ie)	(380 ... 415 V) 4000 A
rated impulse withstand voltage (uimp)	12 kV
rated short-circuit making capacity (icm)	(690 V) 176 kA
conventional free-air thermal current (ith)	q = 40 °C 4000 A
