ABB

1SCA129218R1001

Name: 1SCA129218R1001
Brand: ABB
Availability: PreOrder

Product type: OTM4000E3W8M230C

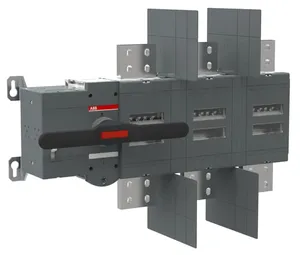

OTM4000E3W8M230C MOTORIZED SWITCH

RoHS Compliant

Description

3-pole, motor operated, base mounted switch-diconnector with handle for manual operation, terminal bolt kit, handle and spare fuse storage clip and male connector for control circuit OTM4000E3W8M230C

Low Voltage Products and Systems
Switches
Motorized Switch-Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA129218R1001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	45.5 KG / psc.
Commodity number	85365080
Country of origin	FI
Dimensions (WxHxD)	590x790x210 mm
EAN code	6417019589022
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
lock type	Yes
standards	IEC 60947-3
power loss	at Rated Operating Conditions per Pole 120 W
handle type	Direct mounted handle
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
handle color	Black
mounting type	Base mounting
terminal type	Lug terminals
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode	Front operated
ul certificate	https://library.abb.com/d/No certification needed
number of poles	3
vde certificate	https://library.abb.com/d/No certification needed
atex certificate	https://library.abb.com/d/No certification needed
pollution degree	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	Wide phase distance 185
tightening torque	acc. IEC 60947-1 50 ... 75 N·m
degree of protection	Front IP00
mechanical durability	5000
distance between phases	Phase distance 185 mm
motor operational voltage	220 ... 240 V AC
rated operational voltage	Main Circuit 1000 V
object classification code	Q
position of line terminals	Top In - Bottom Out
switches operating mechanism	Mechanism at the End of the Switch
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce	https://library.abb.com/d/1SCC301214D2701
rated operational current ac-21b (ie)	(380 ... 415 V) 4000 A
rated operational current ac-22b (ie)	(380 ... 415 V) 4000 A
rated impulse withstand voltage (uimp)	12 kV
rated short-circuit making capacity (icm)	(690 V) 176 kA
conventional free-air thermal current (ith)	q = 40 °C 4000 A
rated short-time withstand current low voltage (icw)	for 1 s 80 kA
