ABB

1SCA129240R1001

Name: 1SCA129240R1001
Brand: ABB
Availability: PreOrder

Product type: OTM3200E3CM230C

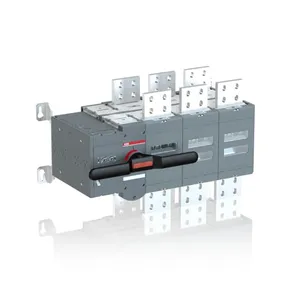

OTM3200E3CM230C MOTORIZED C/O SWITCH

RoHS Compliant

Description

OTM3200E3CM230C MOTORIZED C/O SWITCH, Direct mounted handle, Open transition OTM3200E3CM230C

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA129240R1001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	61 KG / psc.
Commodity number	85365080
Country of origin	FI
Dimensions (WxHxD)	780x500x580 mm
EAN code	6417019589374
Product group	FA
eclass	V11.1 : 27371403
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
handle type	Direct mounted handle
mounting type	Base mounting
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode	Front operated
number of poles	3
transition type	Open
distance between phases	Standard
motor operational voltage	220 ... 240 V AC
position of line terminals	Top In - Bottom Out, Bottom In - Top Out
switches operating mechanism	Mechanism at the End of the Switch
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/1SCC303003C0201
rated operational current ac-21b (ie)	(380 ... 415 V) 3200 A(500 V) 3200 A
conventional free-air thermal current (ith)	q = 40 °C 3200 A
