| Weight | 18.3 KG / psc. |
| Commodity number | 85389099 |
| Country of origin | FI |
| Dimensions (WxHxD) | 0.485x0.682x0.162 m |
| EAN code | 6417019701233 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| standards | IEC 60947-1, -3 |
| power loss | at Rated Operating Conditions per Pole 4 W |
| handle type | Pistol handle |
| handle color | Red / Yellow |
| neutral type | Fixed neutral |
| mounting type | Panel mounted |
| weee category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| enclosure type | Fro |
| number of poles | 3 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC340057D2701 |
| e-number (norway) | 1414564 |
| enclosure material | Aluminium |
| mechanical drawings | https://library.abb.com/d/OTFK4734821PBL68.stp |

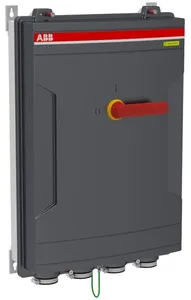

| abb type designation | ABB1SCA142588R1001 |
| cable entry position | Down/Down |
| degree of protection | acc. to IEC 60529 IP65 |
| mechanical durability | 20000 |
| cable outlets per side | Blank / 4x28...68+2xM20 |
| impact resistance rating | Housing IK09 |
| rated operational voltage | Main Circuit 1000 V |
| mounted auxiliary contacts | 2 NO, 2 NC |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC340057D2701 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 2 |
| connecting capacity main circuit | Hole Diameter 10 mmScrew Clamp / PE Terminal 2pc,25 ... 120 mm2 |
| data sheet, technical information | https://library.abb.com/d/1SCC340015C0201 |
| maximum mounted auxiliary contacts | 2 NO, 2 NC |
| conventional thermal current (ithe) | Fully Enclosed 200 A |
| rated operational power ac-23a (pe) | (380 ... 415 V) 110 kW(500 V) 132 kW(690 V) 160 kW |
| rated operational current ac-22a (ie) | (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A |
| rated operational current ac-23a (ie) | (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A |
| rated short-circuit making capacity (icm) | (1000 V AC) 30 kA |
| rated conditional short-circuit current (inc) | 61.5 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 8 kA |
