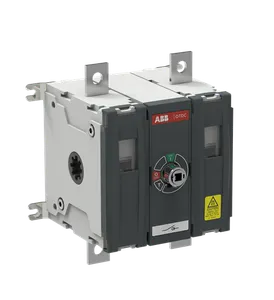

| Weight | 1.85 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FI |
| Dimensions (WxHxD) | 0.146x0.165x0.12 m |
| EAN code | 6417019920573 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| unspsc | 39122233 |
| standards | UL98B and IEC 60947-1, -3 |
| power loss | at Rated Operating Conditions per Pole 7.7 ... 8.4 W |
| handle type | Handle and shaft not included |
| rohs status | Following EU Directive 2011/65/EU |
| utilization | Photovoltaic |
| mounting type | Base mounting |
| terminal type | Lug terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front Operated |
| shaft diameter | 6 mm0.24 in |
| terminal width | 19.5 mm0.77 in |
| ul certificate | https://library.abb.com/d/UL certificate OTDC100-250UG |
| number of poles | 2 |
| protection type | Circuit breaker |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/1SCC301242D2701 |
| special functions | No |
| tightening torque | Cable Lug 15 ... 22 N·m |
| number of circuits | 1 |
| product frame size | S2.0 |
| mechanical drawings | https://library.abb.com/d/OTDC100-250_G_11_STP, https://library.abb.com/d/1SCC307811F0201 |
| ampere rating ul/csa | 1500VDC 250 A |
| degree of protection | Front IP20 |
| utilization category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)Switching of single PV string(s) without reverse and overcurrents (DC-PV1)Switching of several PV string(s) with reverse and overcurrents (DC-PV2) |
| mechanical durability | 10000 cycle |
| connection configuration | Single circuit 2a, 2b |
| tightening torque ul/csa | Cable Lug 10 ... 12 N·mCable Lug 133 ... 195 lbf·in |
| rated operational voltage | 1500 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism Between the Poles11 (Between the Poles) |
| rated insulation voltage (ui) | 1500 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301242D2701 |
| maximum operating voltage ul/csa | 1500 V DC |
| rated operational current dc-pv1 | (1500 V) 200 A |
| rated operational current dc-pv2 | (1500 V) 100 A |
| data sheet, technical information | https://library.abb.com/d/1SCC301022C0201 |
| conventional thermal current (ithe) | Fully Enclosed 250 A |
| short-circuit current rating (sccr) | Any UL Listed Fuses or Circuit-Breakers 10 kA1500 V DC |
| rated operational current dc-21b (ie) | (1500 V) 250 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| rated short-circuit making capacity (icm) | (1500 V DC) 10 kA |
| conventional free-air thermal current (ith) | q = 40 °C 315 A |
| rated short-time withstand current low voltage (icw) | (1500 V DC) 10 kAfor 1 s 10 kA |
| positive opening operation torque (direct opening action) | 6 ... 9 N·m |
