ABB

1SDA055502R1

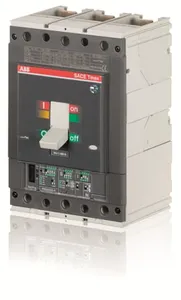

Product type: T5S 400 UL/CSA PR222DS/P-LSI 300 3p F F

T5S 400 UL/CSA PR222DS/P-LSI 300 3p F F

Datasheet

RoHS Compliant

Description

C.BREAKER TMAX T5S 400 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSI R 300 T5S 400 UL/CSA PR222DS/P-LSI 300 3p F F

Low Voltage Products and Systems
Circuit Breakers
Moulded Case Circuit Breakers
Tmax T

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SDA055502R1.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	5.1 KG / psc.
Commodity number	85362090
Country of origin
Dimensions (WxHxD)	140x205x103.5 mm
EAN code	8015644568214
Product group	LA
eclass	V11.1 : 27370409
etim 6	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 7	EC000228 - Power circuit-breaker for trafo/generator/installation protection
etim 8	EC000228 - Power circuit-breaker for trafo/generator/installation protection
release	PR222DS/P-LSI
version	F
sub-type	T5
standards	UL
power loss	at Rated Operating Conditions per Pole 9.3 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	Moulded Case Circuit Breaker
release type	EL
suitable for	T5
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
gl certificate	https://library.abb.com/d/1SDL000163R0062
number of poles	3
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	SACE Tmax T
reach declaration	https://library.abb.com/d/9AKK108466A1425
rated current (in)	Main Circuit 300 A
mechanical durability	20000 cycle120 cycles per hour
order code us and canada	T5S300CW
terminal connection type	Fixed Circuit-BreakersFront
test voltage max (utest)	3500 V
environmental information	https://library.abb.com/d/9AKK10103A1056
rated operational voltage	600 V AC
suitable for product class	Moulded Case Circuit Breakers
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5539
short-circuit performance level	S
rated uninterrupted current (iu)	400 A
data sheet, technical information	https://library.abb.com/d/9AKK105713A5947
interrupting rating acc. to ul489	(240 V AC) 100 kA(480 V AC) 35 kA(600 V AC) 25 kA
rated impulse withstand voltage (uimp)	8 kV
