ABB

1SDA060124R1

Name: 1SDA060124R1
Brand: ABB
Availability: PreOrder

Product type: T5H-D 400 MCS-UL/CSA Im=5000 4p F F

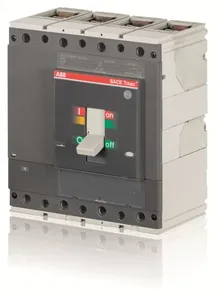

T5H-D 400 MCS-UL/CSA Im=5000 4p F F

RoHS Compliant

Description

SWITCH-DISCONNECTOR TMAX T5H-D 400 MCS-UL/CSA FIXED FOUR-POLE WITH FRONT TERMINALS Im 5000 A T5H-D 400 MCS-UL/CSA Im=5000 4p F F

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SDA060124R1.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.15 KG / psc.
Commodity number	85362090
Country of origin
Dimensions (WxHxD)	248x240x285 mm
EAN code	8015644625702
Product group	LA
eclass	V11.1 : 27371403
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
version	F
sub-type	T5
standards	UL 489CSA C22.2
power loss	at Rated Operating Conditions per Pole 19.5 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	Moulded Case Circuit Breaker
suitable for	T5
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
gl certificate	https://library.abb.com/d/1SDL000163R0062
number of poles	4
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	SACE Tmax T
reach declaration	https://library.abb.com/d/9AKK108466A1425
order code us and canada	T5H400DW-4
terminal connection type	Fixed Circuit-BreakersFront
environmental information	https://library.abb.com/d/9AKK10103A1056
rated operational voltage	600 V AC600 V DC
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5539
short-circuit performance level	H
rated uninterrupted current (iu)	400 A
data sheet, technical information	https://library.abb.com/d/9AKK105713A5947
rated short-time withstand current low voltage (icw)	for 1 s 6 kA
