| Weight | 9.5 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | |
| Dimensions (WxHxD) | 305x285x370 mm |
| EAN code | 8015644628130 |
| Product group | LA |
| eclass | V11.1 : 27371403 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| unspsc | 39121100 |
| version | F |
| sub-type | T6 |
| standards | IEC 60947 |
| power loss | at Rated Operating Conditions per Pole 32 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |

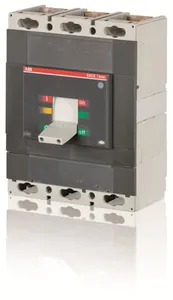

| product name | Moulded Case Circuit Breaker |
| suitable for | T6 |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| number of poles | 3 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax T |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| mechanical durability | 20000 cycle120 cycles per hour |
| terminal connection type | Fixed Circuit-BreakersFront |
| test voltage max (utest) | 3500 V |
| environmental information | https://library.abb.com/d/9AKK10103A1058 |
| rated operational voltage | 690 V AC750 V DC |
| object classification code | Q |
| suitable for product class | Moulded Case Circuit Breakers |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5538 |
| short-circuit performance level | D |
| rated uninterrupted current (iu) | 800 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210015D0201 |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated short-time withstand current low voltage (icw) | for 1 s 15 A |
