| Weight | 1.4 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | IT |
| Dimensions (WxHxD) | 0.102x0.13x0.07 m |
| EAN code | 8015644013202 |
| Product group | LA |
| eclass | V11.1 : 27370409 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| unspsc | 39120000 |
| release | TMD |
| version | F |
| sub-type | XT1 |
| rohs date | NA |
| standards | IEC |
| power loss | at Rated Operating Conditions per Pole 15 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| current type | AC/DC |
| opening time | CB with SOR 15 msCB with UVR 15 ms |

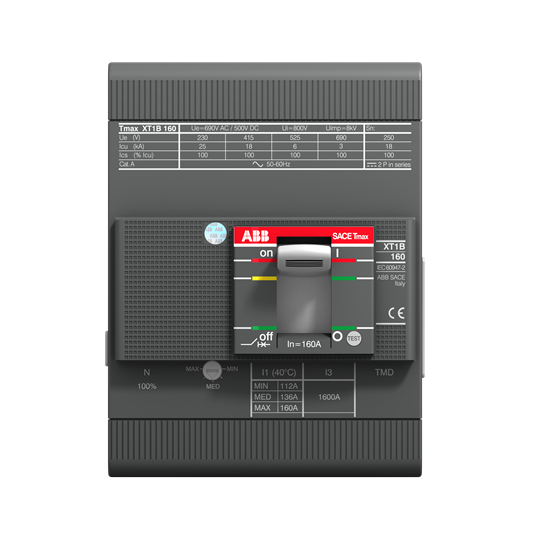

| product name | Moulded Case Circuit Breaker |
| release type | TM |
| setting range | 112...160 A |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| gl certificate | https://library.abb.com/d/1SDL000163R0103 |
| lr certificate | https://library.abb.com/d/1SDL000163R0100 |
| order multiple | 1 piece |
| wiring diagram | https://library.abb.com/d/1SDM000068R0001 |
| number of poles | 4 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax XT |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| e-number (finland) | 3640535 |
| rated current (in) | 160 A |
| rated voltage (ur) | 690 V |
| mechanical drawings | https://library.abb.com/d/1SDH000719R0100 |
| rated frequency (f) | 50 / 60 Hz |
| electrical durability | 120 cycles per hour8000 cycle |
| mechanical durability | 240 cycles per hour25000 cycle |
| order code us and canada | XT1NEN160AFF000XXX |
| terminal connection type | Fixed Circuit-Breakers |
| environmental information | https://library.abb.com/d/9AKK107991A8215 |
| rated operational voltage | 690 V AC500 V DC |
| object classification code | Q |
| rated insulation voltage (ui) | 800 V |
| declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5532 |
| short-circuit performance level | N |
| rated uninterrupted current (iu) | 160 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206 |
| circuit breaker type to be associated | Power Distribution |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated service short-circuit breaking capacity (ics) | (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 18 kA(500 V AC) 15 kA(525 V AC) 11 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA |
| rated ultimate short-circuit breaking capacity (icu) | (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 22 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA |
| rated instantaneous short-circuit current setting (ii) | 1600 A |
