1SDA068183R1
ABB

1SDA068183R1

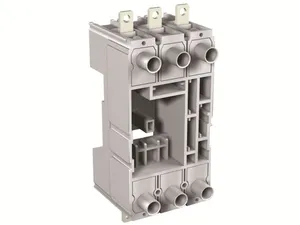

Product type: XT1 P FP 3p EF

XT1 P FP 3p EF

RoHS Compliant

Description

FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT1 XT1 P FP 3p EF
Read More
  • Low Voltage Products and Systems
  • Circuit Breakers
  • Moulded Case Circuit Breakers
  • Tmax XT
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.69 KG / psc.
Commodity number85389099
Country of originIT
Dimensions (WxHxD)120x155x190 mm
EAN code8015644020804
Product groupLA
eclass V11.1 : 27370422
etim 6 EC002043 - Chassis part power circuit breaker
etim 7 EC002043 - Chassis part power circuit breaker
etim 8 EC002043 - Chassis part power circuit breaker
unspsc 39120000
version P
sub-type XT1
standards IEC, UL
rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name Accessory
suitable for XT1
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
order multiple 1 piece
number of poles 3
rohs information https://library.abb.com/d/9AKK108466A1424
product main type Accessories for Tmax XT
reach declaration https://library.abb.com/d/9AKK108466A1425
configuration type Loose or configurable
e-number (finland) 3640546
rated frequency (f) 50 / 60 Hz
order code us and canada KXT1PFPEF-3
terminal connection type Plug-In Circuit-BreakersFront Extended
environmental information https://library.abb.com/d/9AKK107991A8215
rated operational voltage 690 V AC500 V DC
object classification code Q
suitable for product class SACE Tmax XT
rated insulation voltage (ui) 800 V
declaration of conformity - ce https://library.abb.com/d/Refer to the EU Declaration of the relative Circuit Breaker
rated uninterrupted current (iu) 160 A
data sheet, technical information https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206
rated impulse withstand voltage (uimp) 8 kV
