| Weight | 70 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | IT |
| Dimensions (WxHxD) | 515x610x785 mm |
| EAN code | 8015644773076 |
| Product group | LA |
| eclass | V11.1 : 27371403 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| version | F |
| sub-type | E4.2 |
| standards | IEC |
| power loss | 425 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| current type | AC |

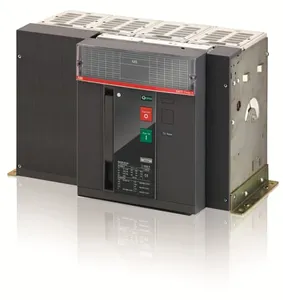

| product name | Switch Disconnector |
| weee category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| wiring diagram | https://library.abb.com/d/1SDM000091R0001 |
| number of poles | 4 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Emax 2 |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| rated current (in) | 3200 A |
| rated voltage (ur) | 690 V |
| mechanical drawings | https://library.abb.com/d/1SDH001001R0100 |
| electrical durability | Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour |
| mechanical durability | 20000 cycle60 cycles per hour |
| order code us and canada | ZCNV00B00000000000XX |
| terminal connection type | Rear flat Horizontal |
| environmental information | https://library.abb.com/d/9AKK10103A1038 |
| rated operational voltage | 690 V AC |
| object classification code | Q |
| neutral pole current ([%iu]) | 100 % |
| rated insulation voltage (ui) | AC 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5545 |
| short-circuit performance level | N |
| rated uninterrupted current (iu) | 3200 A |
| data sheet, technical information | https://library.abb.com/d/1SDC200023D0209 |
| rated impulse withstand voltage (uimp) | 12 kV |
| rated short-time withstand current low voltage (icw) | for 1 s 66 kAfor 3 s 50 kA |
