| Weight | 1.12 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | IT |
| Dimensions (WxHxD) | 131x212x147 mm |
| EAN code | 8015644790479 |
| Product group | LA |
| eclass | V11.1 : 27370409 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| release | Ekip I |
| version | F |
| sub-type | XT2 |
| standards | UL |
| power loss | at Rated Operating Conditions per Pole 0.1 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| current type | AC |
| opening time | CB with SOR 15 msCB with UVR 15 ms |

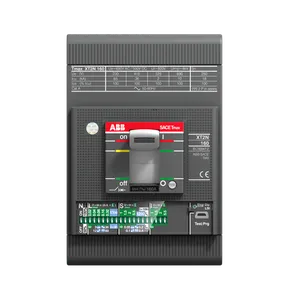

| product name | Moulded Case Circuit Breaker |
| release type | EL |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| order multiple | 1 piece |
| wiring diagram | https://library.abb.com/d/1SDM000068R0001 |
| number of poles | 3 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax XT |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| rated current (in) | 10 A |
| rated voltage (ur) | 600 V |
| mechanical drawings | https://library.abb.com/d/1SDH000721R0100 |
| electrical durability | 120 cycles per hour8000 cycle |
| mechanical durability | Nr. Operations 240 cycles per hourNr. Operations 25000 cycle |
| order code us and canada | XT2HU3010JFF000XXX |
| terminal connection type | Fixed Circuit-Breakers |
| environmental information | https://library.abb.com/d/9AKK107991A8215 |
| rated operational voltage | 600 V AC |
| suitable for product class | SACE Tmax XT |
| declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5901 |
| short-circuit performance level | H |
| rated uninterrupted current (iu) | 125 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210200D0206, https://library.abb.com/d/1SDC210199D0206 |
| interrupting rating acc. to ul489 | (240 V AC) 150 kA(480 V AC) 65 kA(600 V AC) 25 kA |
| circuit breaker type to be associated | Power Distribution |
