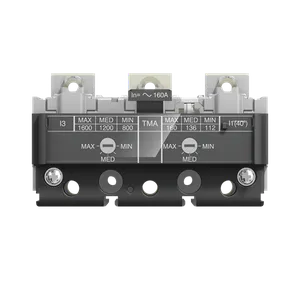

ABB

1SDA076538R1

Name: 1SDA076538R1
Brand: ABB
Availability: PreOrder

Product type: SG.MA 160 Im=960…2240 XT2 3p

SG.MA 160 Im=960…2240 XT2 3p

RoHS Compliant

Description

MAGNETIC RELEASE THREE-POLE IN AC-DC MA Iu 160 I3=960...2240 A XT2 SG.MA 160 Im=960…2240 XT2 3p

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SDA076538R1.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.8 KG / psc.
Commodity number	85389099
Country of origin	IT
Dimensions (WxHxD)	145x75x95 mm
EAN code	8015644812737
Product group	LA
eclass	V11.1 : 27370418
etim 6	EC001023 - Shunt release (for power circuit breaker)
etim 7	EC001023 - Shunt release (for power circuit breaker)
etim 8	EC001023 - Shunt release (for power circuit breaker)
release	MA
standards	IEC
power loss	at Rated Operating Conditions per Pole 16.15 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
current type	AC/DC
product name	Accessory
release type	Magnetic
suitable for	XT2
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
order multiple	1 piece
number of poles	3
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	Accessories for Tmax XT
reach declaration	https://library.abb.com/d/9AKK108466A1425
configuration type	Loose or configurable
rated current (in)	160 A
declaration of conformity - ce	https://library.abb.com/d/Refer to the EU Declaration of the relative Circuit Breaker
data sheet, technical information	https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206
circuit breaker type to be associated	Motor Protection
