ABB

1SDA079589R1

Name: 1SDA079589R1
Brand: ABB
Availability: PreOrder

Product type: E2.2S-A/MS 1600 4p WMP

E2.2S-A/MS 1600 4p WMP

RoHS Compliant

Description

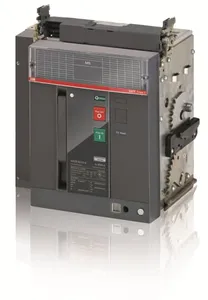

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E2.2S-A/MS 1600 UL FOUR-POLE E2.2S-A/MS 1600 4p WMP

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SDA079589R1.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	49 KG / psc.
Commodity number	85362090
Country of origin	IT
Dimensions (WxHxD)	515x610x615 mm
EAN code	8015644860127
Product group	LA
eclass	V11.1 : 27371403
etim 4	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 5	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
version	W
sub-type	E2.2
standards	UL
power loss	at Rated Operating Conditions per Pole 260 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
current type	AC
product name	Switch Disconnector
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	4
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	SACE Emax 2
reach declaration	https://library.abb.com/d/9AKK108466A1425
rated current (in)	1600 A
rated voltage (ur)	600 V
electrical durability	Ue =< 508 V 12000 cycleUe = 508 ... 635 V 10000 cycle30 cycles per hour
mechanical durability	25000 cycle60 cycles per hour
order code us and canada	ZBSE00A00000000000XX
environmental information	https://library.abb.com/d/9AKK10103A1038
rated operational voltage	600 V AC
neutral pole current ([%iu])	100 %
rated insulation voltage (ui)	AC 635 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5902
short-circuit performance level	S
data sheet, technical information	https://library.abb.com/d/1SXU200040C0201
