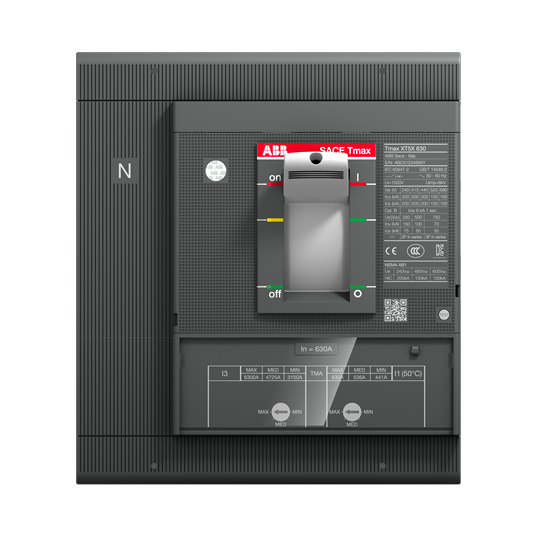

Product type: XT5N 630 TMA 500-5000 4p F F InN=100%In

Kompaktleistungsschalter Tmax XT5 mit vorderseitigen Anschlüssen, 4polig

Description

Kompaktleistungsschalter für Anlagenschutz gemäß EN 60947-2 (DIN VDE 0660, Teil 101), Kompaktlasttrennschalter gemäß EN 60947-3 (DIN VDE 0660, Teil 107). Die Kompaktleistungs- / Lasttrennschalter Tmax XT entsprechen den unterschiedlichen Anlagenanforderungen von Gleich- und Wechselstromnetzen. Tmax XT mit thermomagnetischen- oder elektronischen Auslösern sind einsetzbar zum Schutz von Energieverteilungen, Kabeln, Generatoren und Motoren. Viele dieser Leistungsschalter können auch in Kommunikationssystemen benutzt werden. Umfangreiche Anschlussumbausätze, mechanisches und elektrisches Zubehör sowie Versionsumbausätze (steckbar / ausfahrbar) stehen zur Verfügung. Verschiedene Feldbus und IP Kommunikationsprotokolle können zum Einsatz kommen. Der Installationsprozess wird, dank der Bluetooth- und Ekip-Konnektivität für mobile Geräte, vereinfacht. Die in die SACE Tmax XT-Serie integrierte Konnektivität verknüpft Smartphones, Tablets und PCs in Echtzeit mit Datenanalysetools auf der ABB AbilityTM Cloud-Plattform.
Read More
  • Low Voltage Products and Systems
  • Circuit Breakers
  • Moulded Case Circuit Breakers
  • Tmax XT
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight5.6 KG / psc.
Commodity number85362090
Country of originIT
Dimensions (WxHxD)0.186x0.205x0.104 m
EAN code8056221004640
Product groupLA
eclass V11.1 : 27370409
etim 7 EC000228 - Power circuit-breaker for trafo/generator/installation protection
etim 8 EC000228 - Power circuit-breaker for trafo/generator/installation protection
release TMA
version F
sub-type XT5
standards IEC 60947
power loss 33.5 W
rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
current type AC/DC
product name Moulded Case Circuit Breaker
release type TM
setting range 350...500 A
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
order multiple 1 piece
wiring diagram https://library.abb.com/d/1SDM000005A1001
number of poles 4
rohs information https://library.abb.com/d/9AKK108466A1424
product main type SACE Tmax XT
reach declaration https://library.abb.com/d/9AKK108466A1425
rated current (in) 500 A
mechanical drawings https://library.abb.com/d/1SDH002011A1101
electrical durability 120 cycles per hour5000 cycle
mechanical durability 240 cycles per hour20000 cycle
order code us and canada XT5NE450BBFF000XXX
terminal connection type Fixed Circuit-Breakers
environmental information https://library.abb.com/d/9AKK107991A8215
rated operational voltage 690 V AC750 V DC
object classification code Q
rated insulation voltage (ui) 1000 V
declaration of conformity - ce https://library.abb.com/d/9AKK107680A2824
short-circuit performance level N
rated uninterrupted current (iu) 630 A
data sheet, technical information https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206
circuit breaker type to be associated Power Distribution
rated impulse withstand voltage (uimp) 8 kV
rated service short-circuit breaking capacity (ics) (220 V AC) 70 kA(230 V AC) 70 kA(240 V AC) 70 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 25 kA(525 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 6.25 kA(500 V DC) 2 Poles in Series 6.25 kA
rated short-time withstand current low voltage (icw) 6 kA
rated ultimate short-circuit breaking capacity (icu) (220 V AC) 70 kA(230 V AC) 70 kA(240 V AC) 70 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 25 kA(525 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 2 Poles in Series 25 kA
rated instantaneous short-circuit current setting (ii) 2500...5000 A
