| Weight | 9.117 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | IT |
| Dimensions (WxHxD) | 305x285x370 mm |
| EAN code | 8015644033507 |
| Product group | LA |
| eclass | V11.1 : 27370409 |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| release | TMA |
| version | F |
| sub-type | XT6 |
| standards | UL |
| power loss | at Rated Operating Conditions per Pole 54 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| current type | AC/DC |

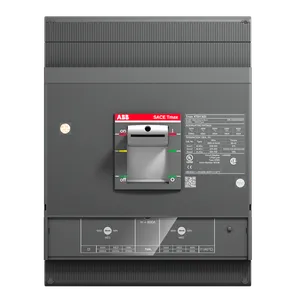

| product name | Moulded Case Circuit Breaker |
| release type | TM |
| setting range | 560...800 A |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| order multiple | 1 piece |
| wiring diagram | https://library.abb.com/d/1SDM000005A1001 |
| number of poles | 3 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax XT |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| rated current (in) | 800 A |
| mechanical drawings | https://library.abb.com/d/1SDH002012A1101 |
| mechanical durability | 240 cycles per hour20000 cycle |
| order code us and canada | XT6NU3800BFF000XXX |
| terminal connection type | Fixed Circuit-Breakers |
| environmental information | https://library.abb.com/d/9AKK107991A8215 |
| rated operational voltage | 600 V AC |
| suitable for product class | SACE Tmax XT |
| declaration of conformity - ce | https://library.abb.com/d/9AKK107680A2825 |
| short-circuit performance level | N |
| rated uninterrupted current (iu) | 800 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210200D0206, https://library.abb.com/d/1SDC210199D0206 |
| interrupting rating acc. to ul489 | (240 V AC) 65 kA(480 V AC) 35 kA(600 V AC) 20 kA(250 V DC) 2 Poles in Series 35 kA(500 V DC) 2 Poles in Series 35 kA(600 V DC) 3 Poles in Series 20 kA |
| circuit breaker type to be associated | Power Distribution |
| rated ultimate short-circuit breaking capacity (icu) | (220 V AC) 70 kA(230 V AC) 70 kA(240 V AC) 70 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(525 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 20 kA(750 V DC) 3 Poles in Series 18 kA |
| rated instantaneous short-circuit current setting (ii) | 4000...8000 A |
