ABB

1SDA115926R1

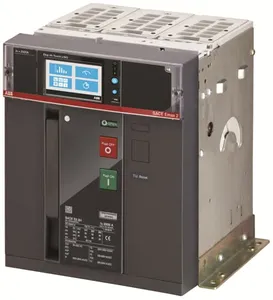

Product type: E2.2H/E10 2500 Ekip Touch LSIG 3p FHR

E2.2H/E10 2500 Ekip Touch LSIG 3p FHR

Datasheet

RoHS Compliant

Description

C.BREAKER 1000V SACE EMAX2 E2.2H/E10 2500 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED E2.2H/E10 2500 Ekip Touch LSIG 3p FHR

Low Voltage Products and Systems
Circuit Breakers
Air Circuit Breakers
Emax 2

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SDA115926R1.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	41 KG / psc.
Commodity number	85362090
Country of origin	IT
Dimensions (WxHxD)	515x610x515 mm
EAN code	8056221079969
Product group	LA
eclass	V11.1 : 27370409
etim 4	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 5	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 6	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 7	EC000228 - Power circuit-breaker for trafo/generator/installation protection
etim 8	EC000228 - Power circuit-breaker for trafo/generator/installation protection
release	Ekip Touch LSIG
remarks	1000V
version	F
sub-type	E2.2
standards	IEC
power loss	267 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
current type	AC
product name	Air Circuit Breaker
release type	EL
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	SACE Emax 2
reach declaration	https://library.abb.com/d/9AKK108466A1425
rated current (in)	2500 A
rated voltage (ur)	1000 V
electrical durability	Ue = 1000 V AC 500 cycle30 cycles per hour
mechanical durability	20000 cycle60 cycles per hour
terminal connection type	Rear flat Horizontal
environmental information	https://library.abb.com/d/9AKK10103A1038
rated operational voltage	1000 V
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5902
short-circuit performance level	N
data sheet, technical information	https://library.abb.com/d/1SDC200023D0209
rated service short-circuit breaking capacity (ics)	(1000 V AC) 50 kA
