ABB

1SEP101917R0001

Name: 1SEP101917R0001
Brand: ABB
Availability: PreOrder

Product type: XLP00-A60/60-A-3BC-above

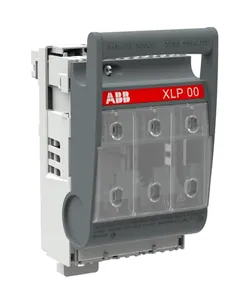

XLP00-A60/60-A-3BC-above Fuse Switch Disconnector

RoHS Compliant

Description

XLP00,3-pole,160A, incl. A60/60 adapter and 3 Bridge Clamps, cable above XLP00-A60/60-A-3BC-above

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP101917R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.95 KG / psc.
Commodity number	85389099
Country of origin	BG / CN
Dimensions (WxHxD)	105x206x126 mm
EAN code	7025840015642
Product group	DA
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH00NH000
standards	IEC60947-3
power loss	at Rated Load 3.5 W
fuse system	DIN
handle type	Front cover 3P
mounting type	60mm Busbar System
terminal type	Cable Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
special functions	Not Included
rated current (in)	160 A
rated voltage (ur)	400 V AC500 V AC690 V AC800 V AC1000 V AC
rated frequency (f)	Main Circuit 50/60 Hz
degree of protection	IP30
device type manager (dtm)	Fuseswitchdisconnector
rated operational voltage	400 V AC500 V AC690 V AC800 V AC1000 V AC
electronic fuse monitoring	No
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/1SEP500050P0001
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated operational current ac-21b (ie)	(690 V) 125 A
rated operational current ac-22b (ie)	(500 V) 160 A(800 V) 63 A(1000 V) 125 A
rated operational current ac-23b (ie)	(400V) 125 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
