ABB

1SEP101918R0001

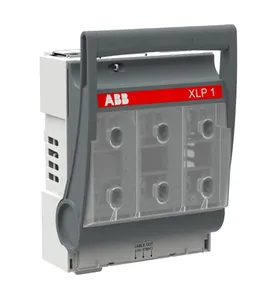

Product type: XLP1-A60/85-B-3BC-below

XLP1-A60/85-B-3BC Sich. Lasttrennsch. 3-polig 250A m. 3 Brückenklemmen

Datasheet

Description

Die EasyLine-Baureihe von ABB verfügt über ein robustes, einheitliches Design, das benutzerfreundlich gestaltet ist. Dank diesem modernen Design schaltet die Baureihe Nennströme von 100 A - 630 A bei Spannungen von 220 V bis 690 V mit Leichtigkeit. Zudem wird ein hohes Maß an Sicherheit gewährleistet mit der Schutzart IP30 von vorne in geschlossener Position und der Schutzart IP20 in der offenen Position. ABB bietet Ihnen die Baureihe in 1-, 2-, 3- und 4-poligen Varianten inklusive einem breiten Angebot an Kabelklemmen und Schnappzubehör an. Darüber hinaus sind die Geräte nach EN / IEC 60947-3 geprüft.

Low Voltage Products and Systems
Fusegear
Fuse Switch Disconnectors
EasyLine

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP101918R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.47 KG / psc.
Commodity number	85365019
Country of origin	BG
Dimensions (WxHxD)	0.185x0.292x0.16 m
EAN code	7025840019664
Product group	DA
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH1
standards	IEC60947-3
power loss	at Rated Load 7.5 W
fuse system	DIN
handle type	Front cover 3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
mounting type	60mm Busbar System
terminal type	Cable Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	Not Included
e-number (finland)	3601056
rated current (in)	250 A
rated voltage (ur)	500 V AC690 V AC800 V AC
rated frequency (f)	Main Circuit 50/60 Hz
degree of protection	IP30
device type manager (dtm)	Fuseswitchdisconnector
rated operational voltage	500 V AC690 V AC800 V AC
electronic fuse monitoring	No
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/1SEP500050P0001
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated operational current ac-21b (ie)	(690 V) 200 A
rated operational current ac-22b (ie)	(500 V) 250 A(800 V) 250 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
