ABB

1SEP102285R0001

Product type: XLP2-A60/120-A-above

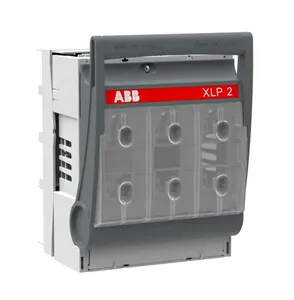

XLP2-A60/120-A-above Fuse Switch Disconnector

Datasheet

RoHS Compliant

Description

XLP2,3-pole,400A, incl. A60/120 adapter, cable above without clamps or bolts XLP2-A60/120-A-above

Low Voltage Products and Systems
Fusegear
Fuse Switch Disconnectors
EasyLine

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP102285R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.6 KG / psc.
Commodity number	85389099
Country of origin	CN
Dimensions (WxHxD)	210x290x210 mm
EAN code	7025840081098
Product group	DA
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH2
standards	IEC60947-3
power loss	at Rated Load 13 W
fuse system	DIN
handle type	Front cover 3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
mounting type	60mm Busbar System
terminal type	Lug terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	Not Included
e-number (finland)	3601067
rated current (in)	400 A
rated voltage (ur)	500 V AC690 V AC
rated frequency (f)	Main Circuit 50/60 Hz
degree of protection	IP30
device type manager (dtm)	Fuseswitchdisconnector
rated operational voltage	500 V AC690 V AC
electronic fuse monitoring	No
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/1SEP500050P0001
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated operational current ac-21b (ie)	(690 V) 315 A
rated operational current ac-22b (ie)	(500 V) 400 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
