ABB

1SEP201428R0001

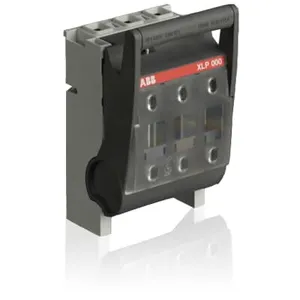

Product type: XLP000-6CC

Sicherungslasttrennschalter 3-polig 100 A mit 6 Brückenklemmen

Datasheet

Description

Die ABB Sicherungslasttrennschalter vom Typ EasyLine XLP erfüllen die Gerätenorm DIN EN 60947-3. Sie eignen sich zur Montage auf einer Montageplatte, DIN-Schiene bzw. Sammelschienensysteme mit 40 mm oder 60 mm Sammelschienenabstand. Unser Angebot umfasst 1-polige, 2-polige, 3-polige und 4-polige Ausführungen. Der Einsatzbereich je nach Typ ist für AC- und DC-Spannungen. Es gibt zudem Ausführungen mit einer Sicherungsüberwachung (EFM). Als Zubehör bietet ABB Hilfskontakte, Kabelanschlussklemmen, Frontblenden und noch vieles mehr.

Low Voltage Products and Systems
Fusegear
Fuse Switch Disconnectors
EasyLine

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP201428R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.4 KG / psc.
Commodity number	85365019
Country of origin	BG
Dimensions (WxHxD)	0.09x0.152x0.08 m
EAN code	7025840013372
Product group	DA
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH000NH00C
standards	IEC60947-3GB/T14048.3
power loss	at Rated Load 1.4 W
fuse system	DIN
handle type	Front cover 3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
mounting type	Baseplate
terminal type	Cable Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/1SCC011020D0201
e-number (sweden)	2307300
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	Not Included
e-number (finland)	3601062
rated current (in)	100 A
rated voltage (ur)	400 V AC500 V AC690 V AC
rated frequency (f)	Main Circuit 50/60 Hz
degree of protection	IP30
device type manager (dtm)	Fuseswitchdisconnector
rated operational voltage	400 V AC500 V AC690 V AC
electronic fuse monitoring	No
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/1SEP500050P0001
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated operational current ac-21b (ie)	(690 V) 50 A
rated operational current ac-22b (ie)	(500 V) 100 A
rated operational current ac-23b (ie)	(400V) 80 A
rated impulse withstand voltage (uimp)	Main Circuit 6 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
