ABB

1SEP600117R0002

Name: 1SEP600117R0002
Brand: ABB
Availability: PreOrder

Product type: XLP1-2P-4BC

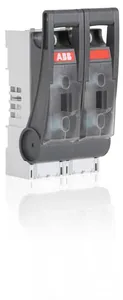

XLP1-2P-4BC Fuse Switch Disconnector

RoHS Compliant

Description

XLP1,2-pole,250A, incl. 4 Bridge Clamps XLP1-2P-4BC

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP600117R0002.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.87 KG / psc.
Commodity number	85389099
Country of origin	CN
Dimensions (WxHxD)	140x117x269 mm
EAN code	7025840086611
Product group	DA
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH1
standards	IEC60947-3
power loss	at Rated Load 7.5 W
fuse system	DIN
handle type	Front cover 2P
mounting type	Baseplate
terminal type	Cable Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	2
special functions	Not Included
rated current (in)	250 A
rated voltage (ur)	440 V DC500 V AC690 V AC
rated frequency (f)	Main Circuit 50/60 Hz
degree of protection	IP30
device type manager (dtm)	Fuseswitchdisconnector
rated operational voltage	440 V DC500 V AC690 V AC
electronic fuse monitoring	No
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/1SEP500050P0001
rated operational current dc-22b	(440 V) 250 A
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated operational current ac-21b (ie)	(690 V) 200 A
rated operational current ac-22b (ie)	(500 V) 250 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
