ABB

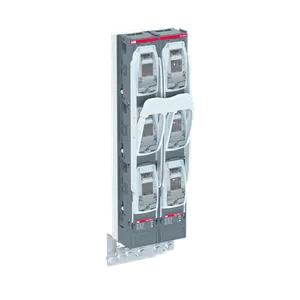

1SEP620103R3000

Product type: BZL2000A-3P-M12

Lasttrennschalter BZL Lasttrennschalter 3-polig schaltbar Einbautiefe 121 mm für Al/Cu Anschluss geeignet

Datasheet

Description

BZL Lasttrennschalter gehören zu der InLine II Serie der Sicherungslasttrennschalter von ABB

Low Voltage Products and Systems
Fusegear
Fuse Switch Disconnectors
Inline II

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP620103R3000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	22.8 KG / psc.
Commodity number	85369095
Country of origin	BG
Dimensions (WxHxD)	0.199x0.775x0.268 m
EAN code	7025840093558
Product group	DB
eclass	V11.1 : 27371403
etim 4	EC000216 - Switch disconnector
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
fuse size	Solid link
standards	IEC60947-3
power loss	at Rated Load 549.9 W
fuse system	DIN
handle type	3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal type	Bolt
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/9AKK107991A6284
product frame size	Low
rated current (in)	Main Circuit 2000 A
mechanical drawings	https://library.abb.com/d/9AKK107680A8041
degree of protection	Front IP30
distance between phases	185 mm
device type manager (dtm)	Switch disconnector
rated operational voltage	690 V AC
electronic fuse monitoring	No
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/1SEP500046P0001
data sheet, technical information	https://library.abb.com/d/1SEC312023D0201
rated operational current ac-21b (ie)	(690 V) 2000 A(500 V) 2000 A(400 V) 2000 A
rated operational current ac-22b (ie)	(400 V) 2000 A
rated operational current ac-23b (ie)	(400V) 2000 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
rated short-circuit making capacity (icm)	30 kA
rated short-time withstand current low voltage (icw)	for 1 s 30 kiloampere rms
