Product type: ZLBM3-3P-BC-Right

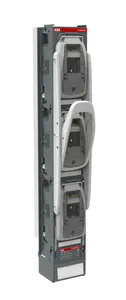

ZLBM3-3P-BC-Right Buscoupler

Datasheet

RoHS Compliant

Description

ZLBM3-3P-BC-Right Buscoupler ZLBM3-3P-BC-Right

Low Voltage Products and Systems
Fusegear
Fuse Switch Disconnectors
Inline II

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP622030R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.65 KG / psc.
Commodity number	85389099
Country of origin	BG
Dimensions (WxHxD)	99x662x185 mm
EAN code	7025840094951
Product group	DB
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH3
rohs date	20201211
standards	IEC60947-3
power loss	at Rated Load 62.8 W
fuse system	DIN
handle type	3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal type	No Terminals
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles	3
pollution degree	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
tightening torque	25 N·m
product frame size	Low
rated current (in)	Main Circuit 630 A
mechanical drawings	https://library.abb.com/d/9AKK106930A2169
degree of protection	Front IP30
mechanical durability	800 cycle
distance between phases	185 mm
device type manager (dtm)	Buscoupler
rated operational voltage	690 V AC
electronic fuse monitoring	No
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/1SEP500046P0001
data sheet, technical information	https://library.abb.com/d/1SEC312023D0201
rated operational current ac-21b (ie)	(690 V) 630 A(500 V) 630 A(400 V) 630 A(800 V) 400 A
rated operational current ac-22b (ie)	(690 V) 630 A(500 V) 630 A(400 V) 630 A(800 V) 400 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
conventional free-air thermal current (ith)	630 A
