ABB

1SEP622349R0001

Name: 1SEP622349R0001
Brand: ABB
Availability: PreOrder

Product type: XLPD0-FS-E18-3P

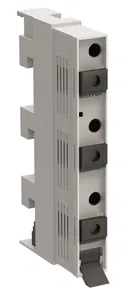

XLPD0-FS-E18-3P Bus-mounted switch disconnector fuse, E18

RoHS Compliant

Description

XLPD0, 3-Pole, 63A, E18, Bus-mounted switch disconnector fuse XLPD0-FS-E18-3P

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP622349R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.3 KG / psc.
Commodity number	85389099
Country of origin	DE
Dimensions (WxHxD)	34x210x113 mm
EAN code	6417019805115
Product group	DA
eclass	V11.1 : 27142110
etim 4	EC000277 - Neozed switch disconnector
etim 5	EC000277 - Neozed switch disconnector
etim 6	EC000277 - D0-system switch disconnector
etim 7	EC000277 - D0-system switch disconnector
etim 8	EC000277 - D0-system switch disconnector
fuse size	D01D02
standards	IEC60947-3
power loss	at Rated Load 7 W
fuse system	Neozed
handle type	Handle Switch 3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
mounting type	60mm Busbar System
terminal type	Main Circuit: Bars
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	Not Included
rated current (in)	63 A
rated voltage (ur)	400 V AC
rated frequency (f)	Main Circuit 50 Hz
device type manager (dtm)	Fusebase
rated operational voltage	400 V AC
electronic fuse monitoring	No
object classification code	S
declaration of conformity - ce	https://library.abb.com/d/1SCC311159D2701
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated operational current ac-22b (ie)	(400 V) 63 A
rated impulse withstand voltage (uimp)	Main Circuit 6 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
