ABB

1SEP622352R0001

Name: 1SEP622352R0001
Brand: ABB
Availability: PreOrder

Product type: XLPD0-FB-E27/42-3P

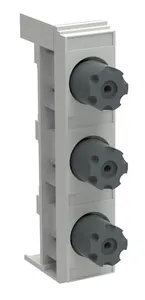

XLPD0-FB-E27/42-3P Bus-mounted fuse base, E27, 42mm

RoHS Compliant

Description

XLPD0, 3-Pole, 25A, E27, 42mm, Bus-mounted fuse base XLPD0-FB-E27/42-3P

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SEP622352R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 8

Product Specifications

Product Attribute	Attribute Value
Weight	0.3 KG / psc.
Commodity number	85389099
Country of origin	DE
Dimensions (WxHxD)	153x208x180 mm
EAN code	6417019805146
Product group	DA
eclass	V11.1 : 27142103
etim 4	EC000094 - Diazed fuse base
etim 5	EC000094 - Diazed fuse base
etim 6	EC000094 - D-system fuse base
etim 7	EC000094 - D-system fuse base
etim 8	EC000094 - D-system fuse base
fuse size	DII
standards	IEC60947-3
power loss	at Rated Load 1.2 W
fuse system	Diazed
mounting type	60mm Busbar System
terminal type	Main Circuit: Bars
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
special functions	Not Included
rated current (in)	25 A
rated voltage (ur)	500 V AC
rated frequency (f)	Main Circuit 50 Hz
utilization category	Connecting and disconnecting under no-load conditions (AC-20)
device type manager (dtm)	Fusebase
rated operational voltage	500 V AC
electronic fuse monitoring	No
object classification code	X
declaration of conformity - ce	https://library.abb.com/d/1SCC390093D2701
data sheet, technical information	https://library.abb.com/d/1SEC312012D0201
rated impulse withstand voltage (uimp)	Main Circuit 6 kV
rated conditional short-circuit current (inc)	(690 V) 50 kiloampere rms
