ABB

1SFA611610R2110

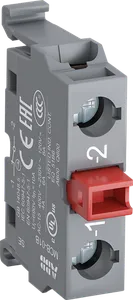

Product type: MCB-01BG

Kontaktblock 1 Öffner goldplattiert, rückseitige Befestigung oder DIN-Schiene

Datasheet

Description

Befehls- und Meldegeräte, Baureihe: Kunststoff Modular. Eine vielseitige Auswahl an Betätigern, Antrieben, Kontaktblöcken, LED-Leuchtmittel und Zubehör mit hoher Flexibilität. Hohe elektrische Leistung der Schaltkontakte: AC-15, 6A bei 230 V. Die flexible Lösung, die Ihre Lagerverwaltung vereinfacht. Es werden die folgenden Normen und Zulassungen erfüllt: IEC/EN 60947-1: Niederspannungsschalt- und Befehlsgeräte – Teil 1: Allgemeine Regeln / IEC/EN 60947-5-1: Niederspannungsschalt- und Befehlsgeräte - Teil 5-1: Steuergeräte und Schaltelemente - Elektromechanische Steuergeräte / IEC/EN 60947-5-5: Niederspannungsschalt- und Befehlsgeräte - Teil 5-5: Steuergeräte und Schaltelemente - Elektrisches NOT-AUS-Gerät mit mechanischer Verrast-Funktion. Die komplette Liste aller technischen Daten und erfüllten Normen finden Sie in unseren Produkt-Datenblättern. Produktreihe: Modular Kunststoff

Low Voltage Products and Systems
Control Products
Pilot Devices
Modular Plastic Range

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFA611610R2110.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.04 KG / psc.
Commodity number	85389099
Country of origin	SE
Dimensions (WxHxD)	0.01x0.044x0.028 m
EAN code	7320500544488
Product group	SH
eclass	V11.0 : 27371302
etim 6	EC000041 - Auxiliary contact block
etim 7	EC000041 - Auxiliary contact block
etim 8	EC000041 - Auxiliary contact block
unspsc	39121500
function	Without holder
rohs date	0635 4
power loss	Maximum 2.5 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
illumination	Non-illuminated
suitable for
mounting type	Rear mounting
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate	https://library.abb.com/d/SEMKO_SE30016M2
weee b2c / b2b	Business To Business
connection type	Screw Clamp
cqc certificate	https://library.abb.com/d/CQC2005010304154103
eac certificate	https://library.abb.com/d/RU C-CN.ME77.B.01927
pollution degree	3
rohs information	https://library.abb.com/d/2CMT2015-005452
culus certificate	https://library.abb.com/d/UL-E76003-20140513
e-number (sweden)	3717123
tightening torque	0.9 N·m
dnv gl certificate	https://library.abb.com/d/E-14107
e-number (finland)	2315716
connecting capacity	Flexible with Ferrule 1 x 0.75...2.5 mm2Flexible with Ferrule 2 x 0.75...2.5 mm2Flexible with Insulated Ferrule 1 x 0.75...2.5 mm2Flexible with Insulated Ferrule 2 x 0.75...2.5 mm2Flexible 1 x 0.75 ... 2.5 mm2Flexible 2 x 0.75 ... 2.5 mm2Solid 1 x 0.75...2.5 mm2Solid 2 x 0.75...2.5 mm2
rated frequency (f)	50 / 60 Hz
degree of protection	Terminals IP20
mechanical durability	10 million
wire stripping length	8 mm
ambient air temperature	Operation -25 ... +70 °CStorage -40 ... +85 °C
environmental information	https://library.abb.com/d/1SAC200074H0001
rated operational voltage	Maximum 690 V
connecting capacity ul/csa	1x 18...14 AWG2x 18...14 AWG
object classification code	S
suitable for product class	Pilot Devices
rated insulation voltage (ui)	690 V
declaration of conformity - ce	https://library.abb.com/d/2CMT2015-005452
declaration of conformity - ccc	https://library.abb.com/d/2020980305001528
number of auxiliary contacts nc	1
number of auxiliary contacts no	0
data sheet, technical information	https://library.abb.com/d/1SFC151007C02__
rated operational current ac-15 (ie)	(230 V AC) 6 A
rated operational current dc-13 (ie)	(24 V) 5 A(125 V) 0.55 A
rated impulse withstand voltage (uimp)	6 kV
