1SFA611612R1010
ABB

1SFA611612R1010

Product type: MCBL-10

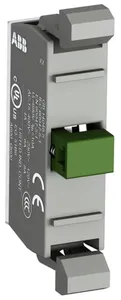

MCBL-10 Contact Block

RoHS Compliant

Description

The MCBL-10 Contact Block is: - Non-illuminated - Micro switch contact block - Front mounting - silver gold plated (Ag/Au) - 1 NO - 0NC - 125 V This Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application. MCBL-10
Read More
  • Low Voltage Products and Systems
  • Control Products
  • Pilot Devices
  • Modular Plastic Range
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 10
Product Specifications
Product AttributeAttribute Value
Weight0.01 KG / psc.
Commodity number8536901000
Country of originCN
Dimensions (WxHxD)110x10x150 mm
EAN code7320500544501
Product groupSH
eclass V11.0 : 27371302
etim 6 EC000041 - Auxiliary contact block
etim 7 EC000041 - Auxiliary contact block
etim 8 EC000041 - Auxiliary contact block
unspsc 39121500
function Without holder
rohs date 0635 4
power loss Maximum 0.45 W
rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
illumination Non-illuminated
suitable for
mounting type Front mounting
terminal type Screw Terminals
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate https://library.abb.com/d/SEMKO_SE30016M2
weee b2c / b2b Business To Business
connection type Screw Clamp
cqc certificate https://library.abb.com/d/CQC2008010305274953
eac certificate https://library.abb.com/d/RU C-CN.ME77.B.01927
pollution degree 3
rohs information https://library.abb.com/d/2CMT2015-005452
culus certificate https://library.abb.com/d/9AKK107046A9925
e-number (sweden) 3705013
tightening torque 0.8 N·m
dnv gl certificate https://library.abb.com/d/E-14107
e-number (finland) 2315866
connecting capacity Flexible with Ferrule 1 x 0.5...1.5 mm2Flexible with Ferrule 2 x 0.5...1.5 mm2Flexible with Insulated Ferrule 1 x 0.5...1.5 mm2Flexible with Insulated Ferrule 2 x 0.5...1.5 mm2Flexible 1 x 0.5 ...1.5 mm2Flexible 2 x 0.5 ...1.5 mm2Solid 1 x 0.5...1.5 mm2Solid 2 x 0.5...1.5 mm2
rated frequency (f) 50 / 60 Hz
wire stripping length 6 mm
ambient air temperature Operation -25 ... +70 °CStorage -40 ... +85 °C
environmental information https://library.abb.com/d/1SAC200074H0001
rated operational voltage Maximum 125 V
connecting capacity ul/csa 1x 22...14 AWG2x 22...14 AWG
object classification code S
suitable for product class Pilot Devices
rated insulation voltage (ui) 125 V
declaration of conformity - ce https://library.abb.com/d/2CMT2015-005452
declaration of conformity - ccc https://library.abb.com/d/2020980305001106
number of auxiliary contacts nc 0
number of auxiliary contacts no 1
data sheet, technical information https://library.abb.com/d/1SFC151007C02__
rated operational current dc-13 (ie) (24 V) 0.3 A
