Product type: TVOC-2-48-C

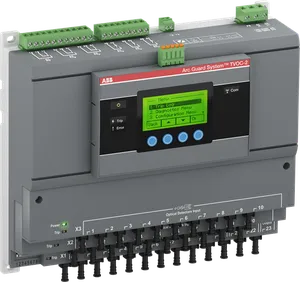

TVOC-2-48-C Arc Monitor

Datasheet

RoHS Compliant

Description

The TVOC-2 Arc Guard System is an arc protection relay that mitigates arc faults and helps to protect people and equipment. The Arc monitor is the main unit of the Arc Guard System which detects the light of an arc and through the fast IGBT contacts sends an electrical signal within 1 ms to a nearby breaker that breaks the power and extinguishes the arc. The Arc monitor has 10 detector inputs and can trip up to three breakers with zone selectivity if needed. Up to 2 extension units can extend the number of light detectors to 30 and the unit includes an HMI that can be placed on the outside of the door. Detectors are sold in a wide range of lengths to fit a full switchgear design. Supply voltage 24... 48 V DC. Accessories include current sensing unit, optical cables, cable straps etc. TVOC-2-48-C

Low Voltage Products and Systems
Circuit Breakers
External Digital Unit
Arc Guard System

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFA664001R1004.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.2 KG / psc.
Commodity number	85389099
Country of origin	PL
Dimensions (WxHxD)	260x125x300 mm
EAN code	7320500511749
Product group	SJ
eclass	V11.0 : 27142214
etim 4	EC001444 - Insulation and earth fault monitoring relay
etim 5	EC001444 - Insulation and earth fault monitoring relay
etim 6	EC002911 - Arc detection system
etim 7	EC002911 - Arc detection system
rohs date	1009 1
power loss	1 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	Arc Monitor
suitable for	TVOC-2
mounting type	Wall mounted or DIN
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
bv certificate	https://library.abb.com/d/39407_B1
ul certificate	https://library.abb.com/d/UL_20110511-E155370
csa certificate	https://library.abb.com/d/UL_20110511-E155370
dnv certificate	https://library.abb.com/d/DNV_E-12926
eac certificate	https://library.abb.com/d/9AKK106713A1450
rohs information	https://library.abb.com/d/2CMT005420
culus certificate	https://library.abb.com/d/UL_20110511-E155370
e-number (sweden)	2800000
product main type	TVOC-2
e-number (finland)	2712558
additional information	ARC MONITOR TVOC-2
ambient air temperature	Operation -25 ... +55 °CStorage -25 ... +55 °C
environmental information	https://library.abb.com/d/1SAC200041H0003
rated operational voltage	24 ... 48 V DC
object classification code	B
declaration of conformity - ce	https://library.abb.com/d/2CMT005420
number of auxiliary contacts nc	0
number of auxiliary contacts no	3
data sheet, technical information	https://library.abb.com/d/1SFC170001C0201
number of auxiliary contacts co (spdt)	3
