ABB

1SFA664002R5001

Product type: CSU-2LV

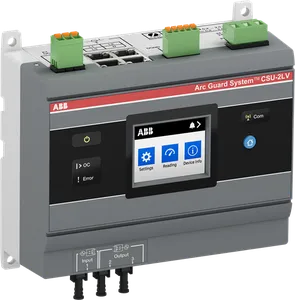

CSU-2LV Current Sensing Unit

Datasheet

RoHS Compliant

Description

Current sensing unit CSU-2LV is an accessory to the Arc Guard System TVOC-2 when dual conditioning of light and current is needed to prevent nuisance tripping of the Arc Guard System. Designed to be used in low voltage applications. Connect 1-4 current sensors RC120... and RC200... to the CSU-2LV to measure L1-L3 and Neutral. Measures wide range of nominal current 0,25... 4 kA and over current 0,25... 12 kA. The unit sends a continuous light to the TVOC-2 while no over current or error occurs. Settings for over current level, warning current level, measured phases etc. are done in the touch screen or through Modbus RTU communication protocol. K1 signal relay is a change-over contact that can be used to signal over current to other system. Combine the CSU-2LV with accessories TVOC-2-OP... to daisy chain several current sensing units and to connect ot TVOC-2 main unit. Rated supply voltage 24... 240 V AC, 24... 250 V DC. CSU-2LV

Low Voltage Products and Systems
Circuit Breakers
External Digital Unit
Arc Guard System

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFA664002R5001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.42 KG / psc.
Commodity number	85389099
Country of origin	PL
Dimensions (WxHxD)	203x126x206 mm
EAN code	7320500524923
Product group	SJ
eclass	V11.0 : 27371605
etim 6	EC001440 - Current monitoring relay
etim 7	EC001440 - Current monitoring relay
rohs date	1009 1
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	Current Sensing Unit
suitable for	TVOC-2
mounting type	Wall mounted or DIN
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
rohs information	https://library.abb.com/d/1SFC170021D2701
product main type	TVOC-2
ambient air temperature	Operation -25 ... +70 °CStorage -25 ... +85 °C
rated operational voltage	24 ... 240 V AC24 ... 250 V DC
declaration of conformity - ce	https://library.abb.com/d/1SFC170021D2701
data sheet, technical information	https://library.abb.com/d/1SFC170001C0201
number of auxiliary contacts co (spdt)	1
