ABB

1SFA664005R2030

Product type: RC200-30

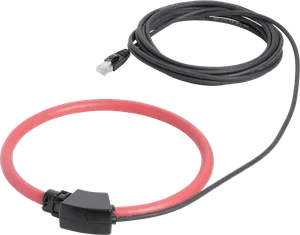

RC200-30 Current Sensor

Datasheet

RoHS Compliant

Description

Open loop current sensor RC200-30 is used together with the CSU-2LV current sensing unit and connected with RJ45 connector. The current sensor uses rogowski coil technology to measure current. The current sensor is specific for CSU-2LV with measurement output of 0,361 V/kA. Coil diameter for bus bar or cable is 200 mm, transducer diameter is 12,4 mm and the cable length of 30 m. The open loop current sensor is assembled with a bayonet holder. RC200-30

Low Voltage Products and Systems
Circuit Breakers
External Digital Unit
Arc Guard System

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFA664005R2030.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.05 KG / psc.
Commodity number	85389099
Country of origin	IT
Dimensions (WxHxD)	300x55x425 mm
EAN code	7320500541685
Product group	SJ
eclass	V11.0 : 27210902
etim 6	EC002048 - Current transformer
etim 7	EC002048 - Current transformer
etim 8	EC002048 - Current transformer
unspsc	39121032
function	Shielded cable
rohs date	1009 1
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	Current Sensor
suitable for	CSU-2LV
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
connection type	RJ45
rohs information	https://library.abb.com/d/2CMT2020-005896
product main type	TVOC-2
ambient air temperature	Operation -30 ... +80 °CStorage -40 ... +80 °C
declaration of conformity - ce	https://library.abb.com/d/2CMT2020-005896
data sheet, technical information	https://library.abb.com/d/1SFC170001C0201
