| Weight | 2.1 KG / psc. |
| Commodity number | 85371091 |
| Country of origin | CN |
| Dimensions (WxHxD) | 195x230x86 mm |
| EAN code | 7320500477267 |
| Product group | SG |
| eclass | V11.0 : 27370907 |
| etim 4 | EC002572 - Electronic motor control and protection device |
| etim 5 | EC002572 - Electronic motor control and protection device |
| etim 6 | EC002572 - Motor management device |
| unspsc | 39121521 |
| ramp time | 0 ... 20 second [unit of time]1 ... 10 second [unit of time] |
| rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| communication | FiledBusPlug(Optional) |
| terminal type | Main Circuit: Bars |
| cqc certificate | https://library.abb.com/d/CQC2008010304295498 |
| rohs information | https://library.abb.com/d/1SFC132031D0202 |
| run signal relay | Yes |
| product main type | PSR105 |
| tightening torque | Control Circuit 0.6 N·mMain Circuit 8 N·mSupply Circuit 0.6 N·m |
| fault signal relay | No |
| overload protection | Recommended MS495 80 ... 100 |
| rated frequency (f) | 50/60 HzMain Circuit 50 / 60 Hz |

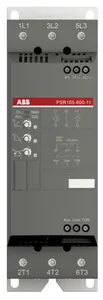

| abb type designation | PSR105-600-11 |
| by-pass signal relay | Yes |
| degree of protection | IP10 |
| overload signal relay | No |
| current limit function | No |
| ambient air temperature | Operation -25 ... +60 °CStorage -40 ... +70 °C |
| global commercial alias | PSR105-600-11 |
| tightening torque ul/csa | Control Circuit 5.3 in·lbMain Circuit 70.8Supply Circuit 5.3 in·lb |
| environmental information | https://library.abb.com/d/1SFC132038D0201 |
| rated operational voltage | 208 ... 600 V AC |
| service factor percentage | 100 % |
| object classification code | Q |
| initial voltage during start | 40 ... 70 % |
| declaration of conformity - ce | https://library.abb.com/d/2CMT004861 |
| integrated electronic overload | No |
| step down voltage special ramp | 100 ... 60 % |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001090 |
| connecting capacity main circuit | Rigid 1x 6 ... 95 mm2Rigid 2 x 6 ... 35 mm2 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| adjustable rated motor current ie | No |
| data sheet, technical information | https://library.abb.com/d/1SFC132012C0201 |
| rated control supply voltage (us) | 24 V AC/DC |
| signal indication running r (led) | Green |
| connecting capacity supply circuit | Rigid 1 x 0.75 ... 2.5 mm2 |
| rated control circuit voltage (uc) | DC Operation 24 V |
| switch for inside delta connection | No |
| connecting capacity control circuit | 1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm2Rigid 1/2 x 0.75 ... 2.5 mm2 |
| signal indication ramping up/down (led) | Green |
| signal indication completed start ramp (led) | Green |
| starting capacity at maximum rated current ie | 4xIe for 6s |
| rated operational power - in-line connection (pe) | (230 V) 30 kW(400 V) 55 kW(500 V) 55 kW |
| signal indication ready to start/standby on (led) | Green |
| rated operational current - in-line connection (ie) | 105 A |
| number of starts per hour at 3.5*ie for 7 sec. 50% on time 50% off time | 10 |
