1SFL431022R8100
Product type: UA95-30-00-81

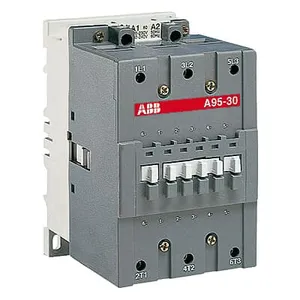

UA95-30-00 24V 50Hz / 24V 60Hz Contactor
Description
A 3-phase Contactor suitable for Capacitor switching application. Maximum permissible peak current 30 times the nominal RMS current. Operated with a control voltage, versions from 24…….690 V
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
- UA and UA..RA Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL431022R8100.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.8 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 90x148x123.5 mm |
| EAN code | 7320500144589 |
| Product group | SC |
| eclass | V11.0 : 27371006 |
| etim 4 | EC001079 - Capacitor magnet contactor |
| etim 5 | EC001079 - Capacitor magnet contactor |
| etim 6 | EC001079 - Capacitor contactor |
| etim 7 | EC001079 - Capacitor contactor |
| etim 8 | EC001079 - Capacitor contactor |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NC Contact Closing 7 ... 15 msBetween Coil Energization and NO Contact Closing 10 ... 25 ms |
| terminal type | Cable Clamp |
| cb certificate | https://library.abb.com/d/SE-72472 |
| cqc certificate | https://library.abb.com/d/CQC2003010304088242, https://library.abb.com/d/CQC2009010304353513 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 26 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A |
| rohs information | https://library.abb.com/d/2CMT2015-005436 |
| culus certificate | https://library.abb.com/d/20160916- E36588 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| environmental information | https://library.abb.com/d/1SFC101001D0201 |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005436 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001551, https://library.abb.com/d/2020980304001055 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Bar 30 mm2Flexible with Cable End 1 x 10 ... 70 mm2Rigid 1 x 10 ... 95 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| data sheet, technical information | https://library.abb.com/d/1SBC101145L0202 |
| rated operational power ac-3 (pe) | (380 / 400 V) 45 kW |
| idea granular category code (igcc) | 4756 >> Capacitor magnet contactor |
| rated control circuit voltage (uc) | 50 Hz 24 V60 Hz 24 V |
| rated operational power ac-6b (pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 35 kvar(230 / 240 V) 55 °C, 50 / 60 Hz 35 kvar(230 / 240 V) 70 °C, 50 / 60 Hz 30 kvar(400 / 415 V) 40 °C, 50 / 60 Hz 65 kvar(400 / 415 V) 70 °C, 50 / 60 Hz 55 kvar(400 / 415 V) 55 °C, 50 / 60 Hz 65 kvar(440 V) 40 °C, 50 / 60 Hz 65 kvar(440 V) 55 °C, 50 / 60 Hz 65 kvar(440 V) 70 °C, 50 / 60 Hz 55 kvar(500 / 550 V), 40 °C, 50 / 60 Hz 70 kvar(500 / 550 V) 55 °C, 50 / 60 Hz 70 kvar(500 / 550 V) 70 °C, 50 / 60 Hz 60 kvar(690 V) 40 °C, 50 / 60 Hz 80 kvar(690 V) 55 °C, 50 / 60 Hz 80 kvar(690 V) 70 °C, 50 / 60 Hz 70 kvar |
| connecting capacity auxiliary circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Flexible 1x0.75 ... 2.5 mm2Solid 2 x 1 ... 4 mm2Stranded 2 x 1 .... 4 mm2 |
| maximum electrical switching frequency | 240 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 145 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A |
| connecting terminals (delivered in open position) main poles | M8 hexagon socket screw with single connector |
