ABB
1SFL451024R8100

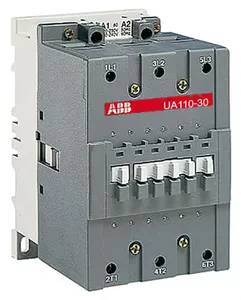

Product type: UA110-30-00RA-81
UA110-30-00RA-81 Kondensatorschütz 24V 50/60Hz
Description
UA110...RA: 3-polige Schütze zur Kondensatorschaltung können in Anlagen eingesetzt werden, bei denen der Spitzenstrom weit über dem 100-fachen Nenn-Effektivstrom liegt. Die Schütze werden komplett mit ihren Dämpfungswiderständen geliefert und müssen ohne zusätzliche Induktivitäten eingesetzt werden. Ihre elektrische Lebensdauer beträgt 250 000 Schaltspiele bei Ue < 500 V und 100 000 Schaltspiele bei 500 V ≤ Ue ≤ 690 V. Die Schütze UA..RA sind mit einem speziellen Frontblock ausgestattet, der die serielle Einfügung von drei Dämpfungswiderständen in den Stromkreis gewährleistet, um die Stromspitze bei der Erregung der Kondensatorbank zu begrenzen. Ihr Anschluss gewährleistet auch die Vorladung der Kondensatoren, um die zweite Stromspitze beim Einschalten der Hauptpole zu begrenzen. Durch den Einsatz von Widerständen kann die höchste Stromspitze des Kondensators beim Einschalten unabhängig von ihrer Höhe gedämpft werden. Die 3-poligen Schütze der Baureihe UA...RA sind in Blockbauweise ausgeführt. - Hauptpole: 3 Hauptpole - Steuerstromkreis: Wechselstrombetätigt mit laminiertem Magnetkreis
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
- UA and UA..RA Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL451024R8100.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.8 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | IN |
| Dimensions (WxHxD) | 0.09x0.17x0.156 m |
| EAN code | 7320500260531 |
| Product group | SC |
| eclass | V11.0 : 27371006 |
| etim 4 | EC001079 - Capacitor magnet contactor |
| etim 5 | EC001079 - Capacitor magnet contactor |
| etim 6 | EC001079 - Capacitor contactor |
| etim 7 | EC001079 - Capacitor contactor |
| etim 8 | EC001079 - Capacitor contactor |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NC Contact Closing 7 ... 15 msBetween Coil Energization and NO Contact Closing 10 ... 25 ms |
| terminal type | Cable Clamp |
| cb certificate | https://library.abb.com/d/SE-72477 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 26 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A |
| rohs information | https://library.abb.com/d/2CMT2015-005436 |
| culus certificate | https://library.abb.com/d/20160916- E36588 |
| rated frequency (f) | Main Circuit 50 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| environmental information | https://library.abb.com/d/1SFC101001D0201 |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005436 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Bar 30 mm2Flexible with Cable End 2 x 6 ... 35 mm2Rigid 2 x 6 ... 65 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| data sheet, technical information | https://library.abb.com/d/1SBC101145L0202 |
| idea granular category code (igcc) | 4756 >> Capacitor magnet contactor |
| rated control circuit voltage (uc) | 50 Hz 24 V60 Hz 24 V |
| rated operational power ac-6b (pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 45 kvar(230 / 240 V) 55 °C, 50 / 60 Hz 40 kvar(230 / 240 V) 70 °C, 50 / 60 Hz 35 kvar(400 / 415 V) 40 °C, 50 / 60 Hz 80 kvar(400 / 415 V) 70 °C, 50 / 60 Hz 60 kvar(400 / 415 V) 55 °C, 50 / 60 Hz 70 kvar(440 V) 40 °C, 50 / 60 Hz 85 kvar(440 V) 55 °C, 50 / 60 Hz 75 kvar(440 V) 70 °C, 50 / 60 Hz 70 kvar(500 / 550 V), 40 °C, 50 / 60 Hz 95 kvar(500 / 550 V) 55 °C, 50 / 60 Hz 82 kvar(500 / 550 V) 70 °C, 50 / 60 Hz 78 kvar(690 V) 40 °C, 50 / 60 Hz 130 kvar(690 V) 55 °C, 50 / 60 Hz 110 kvar(690 V) 70 °C, 50 / 60 Hz 100 kvar |
| rated operational current ac-1 (ie) | (690 V) 40 °C 160 A(690 V) 55 °C 145 A(690 V) 60 °C 145 A(690 V) 70 °C 130 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 110 A(440 V) 55 °C 100 A(500 V) 55 °C 100 A(690 V) 55 °C 82 A(1000 V) 55 °C 30 A(380 / 400 V) 55 °C 110 A(220 / 230 / 240 V) 55 °C 110 |
| connecting capacity auxiliary circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Flexible 2x0.75 ... 2.5 mm2Solid 2 x 1 ... 4 mm2Stranded 2 x 1 .... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 160 A |
| connecting terminals (delivered in open position) main poles | M8 hexagon socket screw with single connector |
