ABB

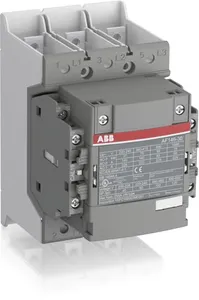

1SFL467063R1122
Product type: AF146B-30-22-11
AF146B-30-22-11 Schütz 24-60V 50/60Hz / 20-60V DC Klemmenanschlüsse
Description
Die 3-poligen AF146B-Schütze erfüllen die neuesten Normen für rollende Eisenbahnfahrzeuge und ermöglichen den Einbau in Fahrgast- oder Führerständen von Zügen, die häufig in Tunneln oder Unterführungen verkehren. Sie schalten Leistungskreise mit Motoren, leicht induktiven oder nicht-induktiven Lasten. Dabei erfüllen sie alle wichtigen Normen für rollendes Material: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 und anwendbare Teile der Normen EN 50155, Schock- und Vibrationsfestigkeit gemäß IEC 61373 Kat. 1, Klasse B. Ebenso erreichen sie die höchsten Stufen im Brand- und Rauchverhalten bei Einhaltung der europäischen Norm EN 45545-2 (HL2-Gefahrenstufen) bei Gruppenmontage. Alle integrierten oder nachträglich angebaute Hilfsöffnerkontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Nur 4 Spulen decken Steuerspannungen von 20...500 VDC bis 24...500 VAC ab. Weiterhin besitzen sie einen eingebauten Überspannungsschutz und benötigen keine zusätzlichen Löschglieder.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL467063R1122.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.55 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | SE |
| Dimensions (WxHxD) | 0.09x0.15x0.126 m |
| EAN code | 7320500511343 |
| Product group | SS |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Main Circuit: Bars |
| cb certificate | https://library.abb.com/d/SEMKO_SE-70479M1 |
| kc certificate | https://library.abb.com/d/9AKK107046A9910 |
| cqc certificate | https://library.abb.com/d/CQC2013010304604055 |
| cul certificate | https://library.abb.com/d/20120925-E36588 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 5.5 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 5.5 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 225 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 225 V·APull-in at Max. Rated Control Circuit Voltage DC 210 W |
| rohs information | https://library.abb.com/d/2CMT2016-005489 |
| e-number (sweden) | 3210435 |
| mechanical durability | 5 million |
| horsepower rating ul/csa | (200 ... 208 V AC) Three Phase 40 hp(220 ... 240 V AC) Three Phase 50 hp(440 ... 480 V AC) Three Phase 100 hp(550 ... 600 V AC) Three Phase 125 hp |
| general use rating ul/csa | (600 V AC) 200 A |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated making capacity ac-3e | 12 x Ie AC-3e |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated breaking capacity ac-3e | 8.5 x Ie AC-3e |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005440 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001304 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006124 |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C0204 |
| rated operational power ac-3 (pe) | (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 90 kW(1000 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 45 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz / 60 Hz 24 ... 60 VDC Operation 20 ... 60 V |
| rated operational power ac-3e (pe) | (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 90 kW(1000 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 45 kW |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 225 A(1000 V) 55 °C 200 A(1000 V) 60 °C 200 A(1000 V) 70 °C 175 A(690 V) 40 °C 225 A(690 V) 55 °C 200 A(690 V) 60 °C 200 A(690 V) 70 °C 175 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 146 A(440 V) 55 °C 130 A(500 V) 55 °C 130 A(690 V) 55 °C 93 A(1000 V) 55 °C 60 A(380 / 400 V) 55 °C 146 A(220 / 230 / 240 V) 55 °C 146 |
| rated operational current dc-1 (ie) | (110 V) 2 Poles in Series, 40 °C 200 A(110 V) 2 Poles in Series, 60 °C 200 A(110 V) 2 Poles in Series, 70 °C 175 A(110 V) 3 Poles in Series, 40 °C 200 A(110 V) 3 Poles in Series, 60 °C 200 A(110 V) 3 Poles in Series, 70 °C 175 A(175 V) 2 Poles in Series, 40 °C 200 A(175 V) 2 Poles in Series, 60 °C 200 A(175 V) 2 Poles in Series, 70 °C 175 A(220 V) 3 Poles in Series, 40 °C 200 A(220 V) 3 Poles in Series, 60 °C 200 A(220 V) 3 Poles in Series, 70 °C 175 A(260 V) 3 Poles in Series, 40 °C 200 A(260 V) 3 Poles in Series, 60 °C 200 A(260 V) 3 Poles in Series, 70 °C 175 A(72 V) 1-Pole, 40 °C 200 A(72 V) 1-Pole, 60 °C 200 A(72 V) 1-Pole, 70 °C 175 A(72 V) 2 Poles in Series, 40 °C 200 A(72 V) 2 Poles in Series, 60 °C 200 A(72 V) 2 Poles in Series, 70 °C 175 A(72 V) 3 Poles in Series, 40 °C 200 A(72 V) 3 Poles in Series, 60 °C 200 A(72 V) 3 Poles in Series, 70 °C 175 A(90 V) 1 Pole, 40 °C 200 A(90 V) 1 Pole, 60 °C 200 A(90 V) 1 Pole, 70 °C 175 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 146 A(440 V) 60 °C 146 A(500 V) 60 °C 130 A(690 V) 60 °C 93 A(1000 V) 60 °C 60 A(380 / 400 V) 60 °C 146 A(220 / 230 / 240 V) 60 °C 146 A |
| maximum mechanical switching frequency | 300 cycles per hour |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 225 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A |
