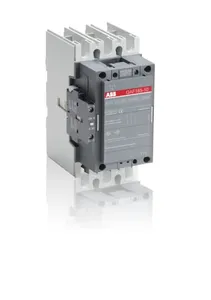

| Weight | 3 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | SE |
| Dimensions (WxHxD) | 111.5x196x160 mm |
| EAN code | 7320500383759 |
| Product group | SC |
| eclass | V11.0 : 27371018 |
| etim 4 | EC002552 - Power contactor, DC switching |
| etim 5 | EC002552 - Power contactor, DC switching |
| etim 6 | EC002552 - Power contactor, DC switching |
| etim 7 | EC002552 - Power contactor, DC switching |
| etim 8 | EC002552 - Power contactor, DC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| terminal type | Main Circuit: Bars |
| cb certificate | https://library.abb.com/d/SEMKO_SE-66709 |
| cqc certificate | https://library.abb.com/d/CQC2012010304547007 |
| cul certificate | https://library.abb.com/d/UL_20100927-E73397 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| ul listing card | https://library.abb.com/d/UL_E73397 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage DC 2 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 430 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 430 V·APull-in at Max. Rated Control Circuit Voltage DC 500 V·A |
| rohs information | https://library.abb.com/d/2CMT003517 |
| dimension diagram | https://library.abb.com/d/53540923-7 |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 5 million |
| ambient air temperature | Operation -40 ... +80 °CStorage -40 ... +70 °C |
| environmental information | https://library.abb.com/d/1SFC101066D0201 |
| general use rating ul/csa | (1000 V DC) 250 A(440 V DC) 250 A(600 V DC) 250 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 1 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to UL/CSA 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT003517 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001543 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Bar 24 mm2Rigid Al-Cable 25 ... 150 mm2Rigid Cu-Cable 6 ... 185 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C0206 |
| idea granular category code (igcc) | 4763 >> Power contactor, DC switching |
| rated control circuit voltage (uc) | 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V |
| rated operational current dc-1 (ie) | (1000 V) 3 Poles in Series, 40 °C 275 A(1000 V) 3 Poles in Series, 55 °C 250 A(1000 V) 3 Poles in Series, 70 °C 180 A(220 V) 3 Poles in Series, 40 °C 275 A(220 V) 3 Poles in Series, 55 °C 250 A(220 V) 3 Poles in Series, 70 °C 180 A(400 V) 3 Poles in Series, 40 °C 275 A(400 V) 3 Poles in Series, 55 °C 250 A(400 V) 3 Poles in Series, 70 °C 180 A(600 V) 3 Poles in Series, 40 °C 275 A(600 V) 3 Poles in Series, 55 °C 250 A(600 V) 3 Poles in Series, 70 °C 180 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Flexible 2x0.75 ... 2.5 mm2Solid 2 x 1 ... 4 mm2Stranded 2 x 1 .... 4 mm2 |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Shock Direction: A 5 gShock Direction: B1 5 gShock Direction: B2 5 gShock Direction: C1 5 gShock Direction: C2 5 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 275 A |
