Product type: AF205B-40-22RT-12

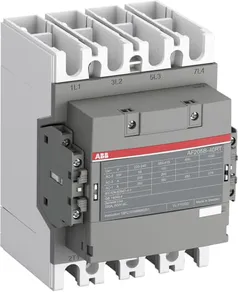

AF205B-40-22RT-12 Contactor
Description
The AF205B-40-22RT-12 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and ring tongue ferrules, controlling motors up to 110 kW / 400 V AC (AC-3) / and switching power circuits up to 350 A (AC-1) or 250 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SFL527262R1222.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 3.3 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | SE |
| Dimensions (WxHxD) | 140x196x152.5 mm |
| EAN code | 7320500510278 |
| Product group | SS |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Main Circuit: Bars |
| cb certificate | https://library.abb.com/d/SE-82315 |
| cqc certificate | https://library.abb.com/d/CQC2014010304676685 |
| cul certificate | https://library.abb.com/d/20150602-E73397_1 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 4 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 4 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 180 V·APull-in at Max. Rated Control Circuit Voltage DC 150 W |
| rohs information | https://library.abb.com/d/2CMT2015-005440 |
| curus certificate | https://library.abb.com/d/20150602-E73397_1 |
| mechanical durability | 5 million |
| general use rating ul/csa | (600 V AC) 250 A |
| number of main contacts nc | 0 |
| number of main contacts no | 4 |
| object classification code | Q |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005440 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001306 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006124 |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C0204 |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz / 60 Hz 48 ... 130 VDC Operation 48 ... 130 V |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 275 A(1000 V) 60 °C 250 A(1000 V) 70 °C 200 A(690 V) 40 °C 350 A(690 V) 60 °C 300 A(690 V) 70 °C 240 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 205 A(440 V) 55 °C 205 A(380 / 400 V) 55 °C 205 A(220 / 230 / 240 V) 55 °C 205 |
| rated operational current dc-1 (ie) | (100 V) 1 Pole, 40 °C 350 A(100 V) 1 Pole, 60 °C 300 A(100 V) 1 Pole, 70 °C 240 A(110 V) 2 Poles in Series, 40 °C 350 A(110 V) 2 Poles in Series, 60 °C 300 A(110 V) 2 Poles in Series, 70 °C 240 A(110 V) 3 Poles in Series, 40 °C 350 A(110 V) 3 Poles in Series, 60 °C 300 A(110 V) 3 Poles in Series, 70 °C 240 A(175 V) 2 Poles in Series, 40 °C 350 A(175 V) 2 Poles in Series, 60 °C 300 A(175 V) 2 Poles in Series, 70 °C 240 A(200 V) 2 Poles in Series, 40 °C 350 A(200 V) 2 Poles in Series, 60 °C 300 A(200 V) 2 Poles in Series, 70 °C 240 A(220 V) 3 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 60 °C 300 A(220 V) 3 Poles in Series, 70 °C 240 A(260 V) 3 Poles in Series, 40 °C 350 A(260 V) 3 Poles in Series, 60 °C 300 A(260 V) 3 Poles in Series, 70 °C 240 A(300 V) 3 Poles in Series, 40 °C 350 A(300 V) 3 Poles in Series, 60 °C 300 A(300 V) 3 Poles in Series, 70 °C 240 A(350 V) 4 Poles in Series, 40 °C 350 A(350 V) 4 Poles in Series, 60 °C 300 A(350 V) 4 Poles in Series, 70 °C 240 A(400 V) 4 Poles in Series, 40 °C 350 A(400 V) 4 Poles in Series, 60 °C 300 A(400 V) 4 Poles in Series, 70 °C 240 A(72 V) 1-Pole, 40 °C 350 A(72 V) 1-Pole, 60 °C 300 A(72 V) 1-Pole, 70 °C 240 A(72 V) 2 Poles in Series, 40 °C 350 A(72 V) 2 Poles in Series, 60 °C 300 A(72 V) 2 Poles in Series, 70 °C 240 A(72 V) 3 Poles in Series, 40 °C 350 A(72 V) 3 Poles in Series, 60 °C 300 A(72 V) 3 Poles in Series, 70 °C 240 A(90 V) 1 Pole, 40 °C 350 A(90 V) 1 Pole, 60 °C 300 A(90 V) 1 Pole, 70 °C 240 A |
| rated operational current dc-3 (ie) | (110 V) 2 Poles in Series, 40 °C 275 A(110 V) 2 Poles in Series, 60 °C 275 A(110 V) 2 Poles in Series, 70 °C 240 A(110 V) 3 Poles in Series, 40 °C 275 A(110 V) 3 Poles in Series, 60 °C 275 A(110 V) 3 Poles in Series, 70 °C 240 A(220 V) 3 Poles in Series, 40 °C 275 A(220 V) 3 Poles in Series, 60 °C 275 A(220 V) 3 Poles in Series, 70 °C 240 A(72 V) 2 Poles in Series, 40 °C 275 A(72 V) 2 Poles in Series, 60 °C 275 A(72 V) 2 Poles in Series, 70 °C 240 A(72 V) 3 Poles in Series, 40 °C 275 A(72 V) 3 Poles in Series, 60 °C 275 A(72 V) 3 Poles in Series, 70 °C 240 A |
| rated operational current dc-5 (ie) | (110 V) 2 Poles in Series, 40 °C 275 A(110 V) 2 Poles in Series, 60 °C 275 A(110 V) 2 Poles in Series, 70 °C 240 A(110 V) 3 Poles in Series, 40 °C 275 A(110 V) 3 Poles in Series, 60 °C 275 A(110 V) 3 Poles in Series, 70 °C 240 A(220 V) 3 Poles in Series, 40 °C 275 A(220 V) 3 Poles in Series, 60 °C 275 A(220 V) 3 Poles in Series, 70 °C 240 A(72 V) 2 Poles in Series, 40 °C 275 A(72 V) 2 Poles in Series, 60 °C 275 A(72 V) 2 Poles in Series, 70 °C 240 A(72 V) 3 Poles in Series, 40 °C 275 A(72 V) 3 Poles in Series, 60 °C 275 A(72 V) 3 Poles in Series, 70 °C 240 A |
| maximum mechanical switching frequency | 300 cycles per hour |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A |
